Center Console Series
325CC
Where weight is critical for superior hull performance and fuel economy in a power boat, the 325CC out performs every boat in its class.325CC
Built using Single-Piece Infusion, or SPI, enabled us to create a lighter, more efficient, more environmentally sensitive power boat. It’s fishing machine that keeps the family in mind.
325CC SPECIFICATIONS
Length
31’10” | 9.7M
Beam
10’2″ | 3.1M
Draft (Boat Only)
22″ | 56CM
Weight
8800LBS
Person Capacity
12
Person Weight
1980LBS | 900KG
Fuel Capacity
300GAL | 1135L
Transom Weight
TWIN-25”
Max Power
700HP | 525KW
Cockpit Depth
30″ | 76CM
Cockpit Area
130SQ.FT. | 12M2
Approx. Length Boat/Trailer
40′ | 12.1M
FEATURES & OPTIONS
Bow
Helm
Cockpit / Stern
STANDARD FEATURES
- Single Piece Infusion (SPI) Structural System
- Limited Lifetime Structural Hull Warranty
- NMMA, ABYC & CE Certified
- Self Bailing Non-Skid Decks
- NO WOOD All Composite Construction
- Closed-Cell Foam Flotation
- Variable Deadrise Deep V Hull
- High Density Composite Transom
- White Gelcoat Hull Color
- Stainless Steel Bow and Stern Eyes (3)
- Welded 316L Stainless Steel Recessed Bow Rail
- 10″ Stainless Steel Under Gunwale Cleats (4)
- 10″ Stainless Steel Flush Pull-Up Cleats (6)
- Bow Lounge Storage Lockers (2) & Insulated Locker (1)
- Insulated 620QT Bow In-Floor Fishbox w/ Pumpout
- Stainless Steel Vertical Rod Holders Forward (4)
- Stainless Steel Gunwale Mounted Rod Holders (6)

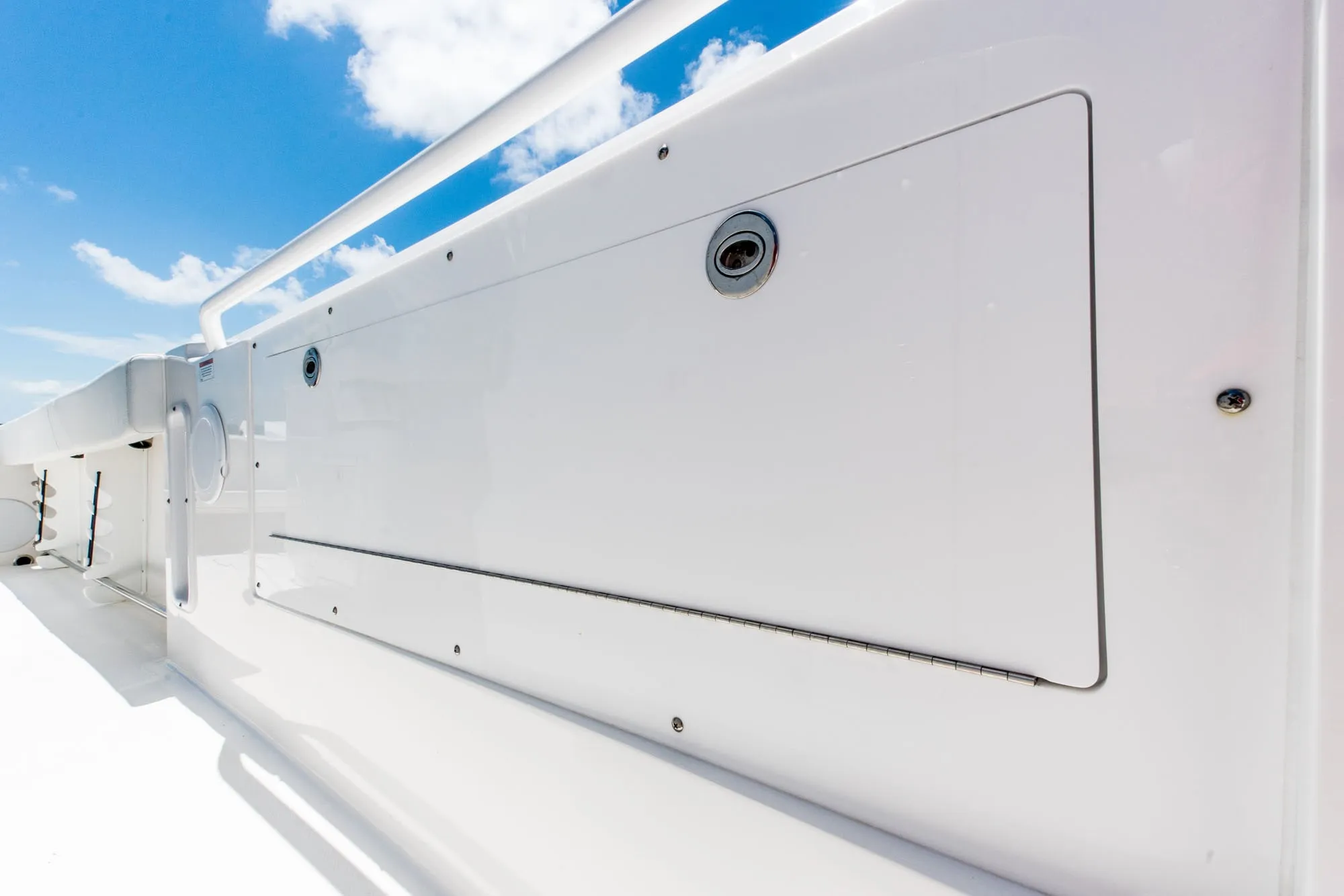

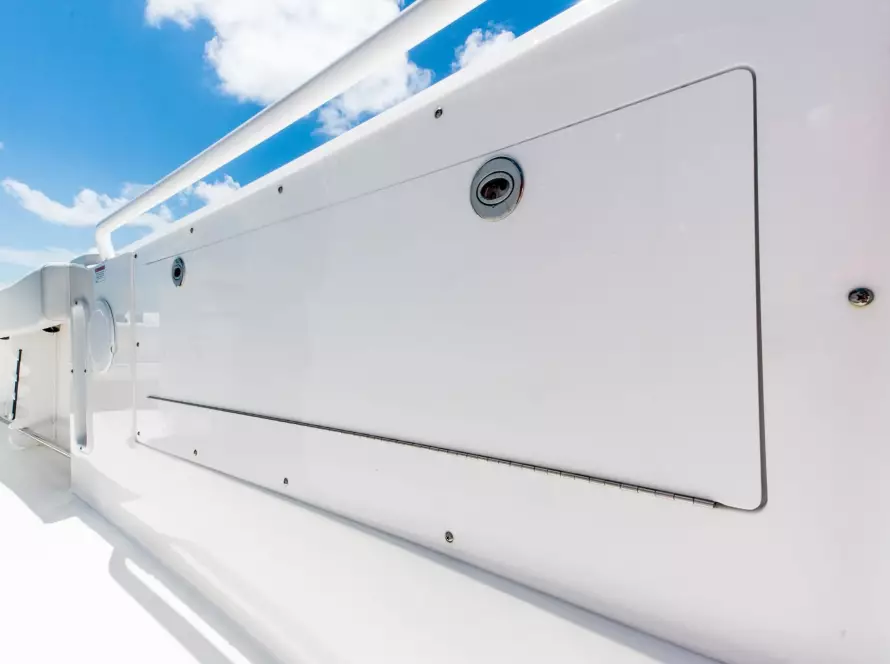

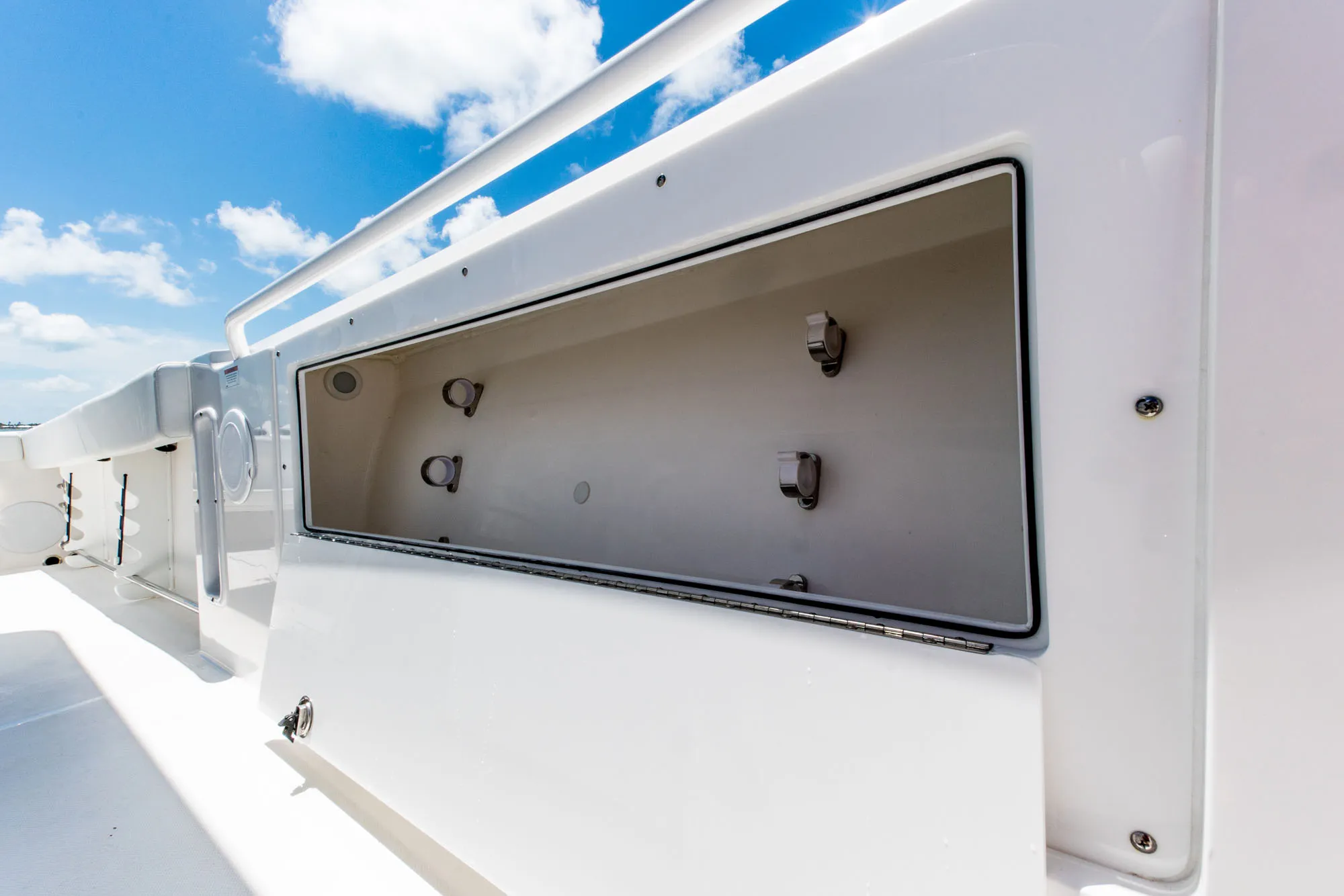

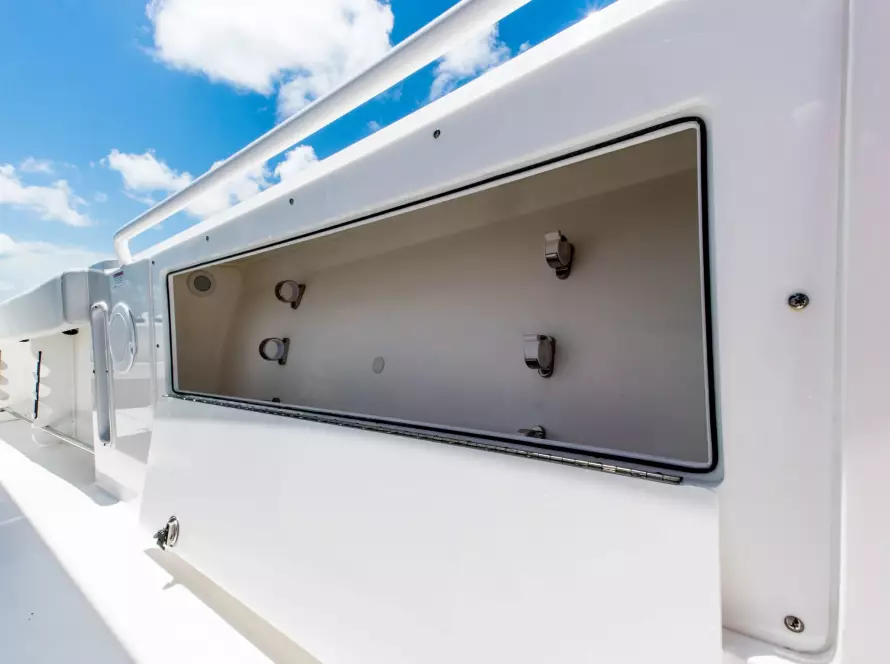

- Locking Midship Rod Storage Lockers w/ Lights (2)
- Fresh Water System w/ 30 Gallon Tank

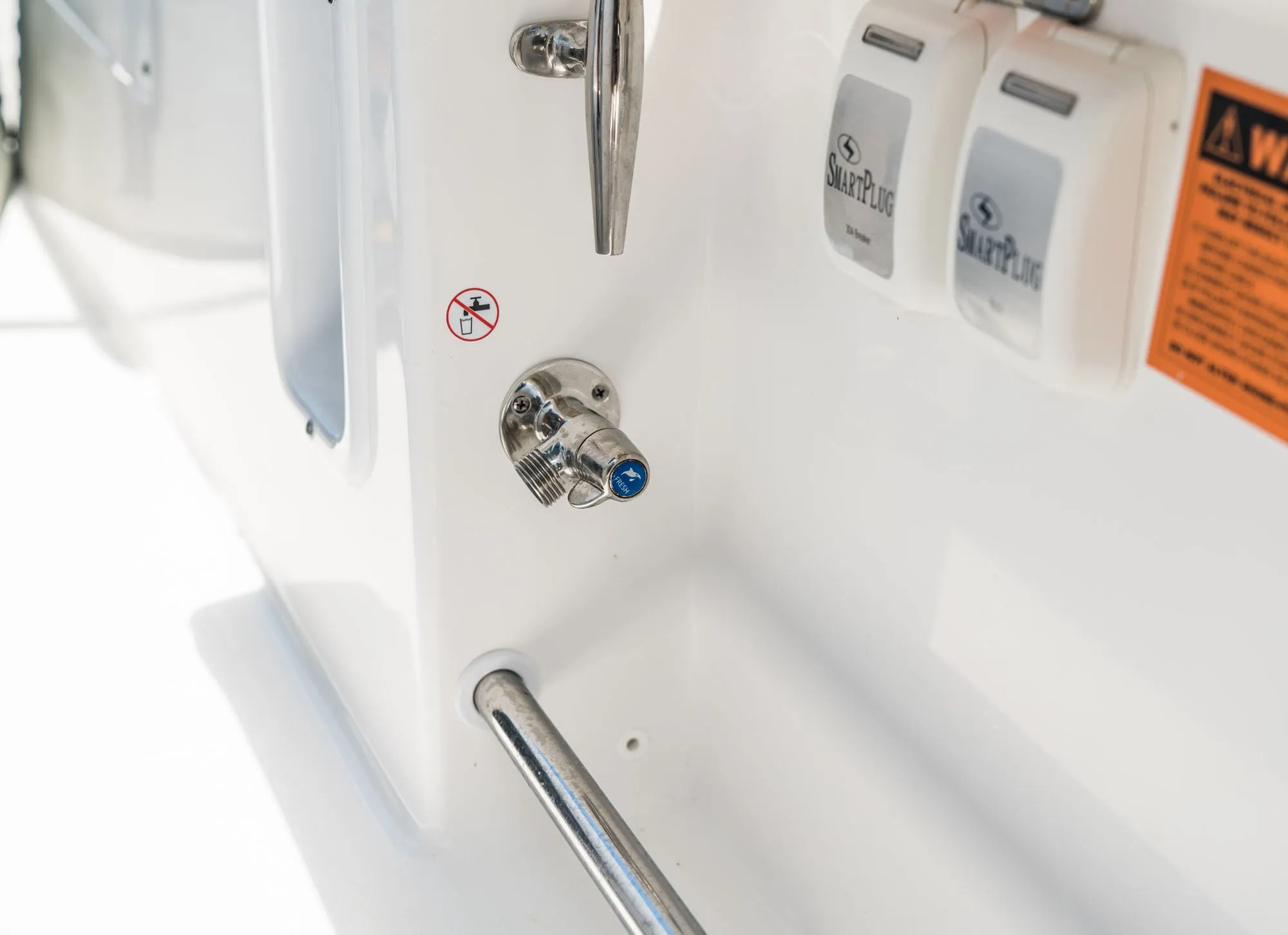

- Raw Water Washdown Outlet
- Transom 28 Gallon Baitwell

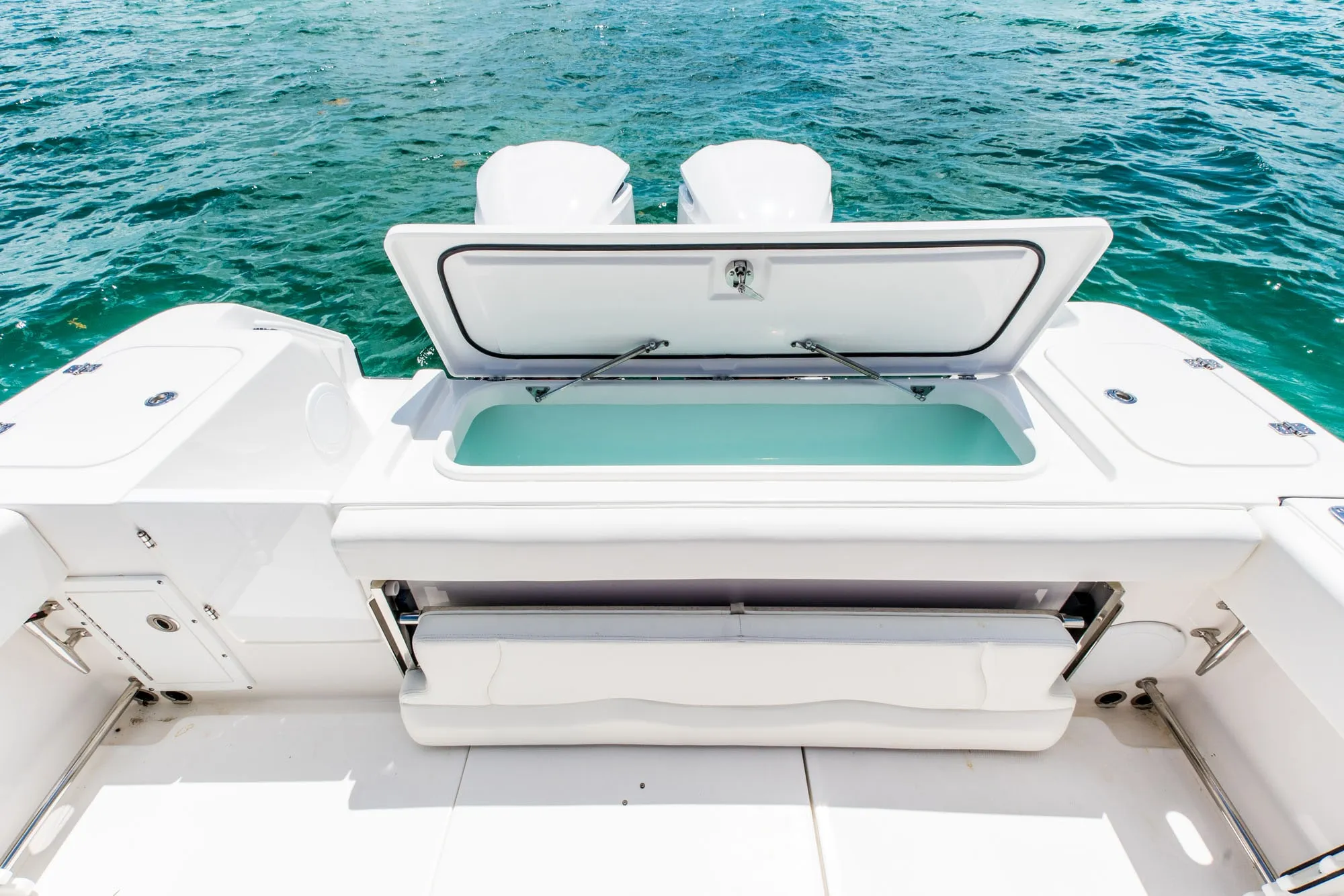

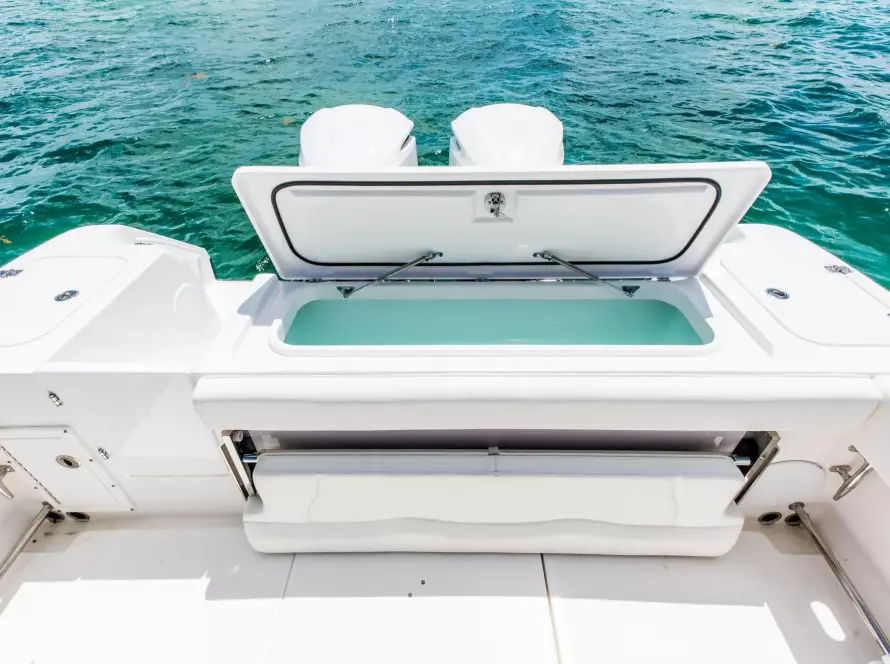

- Transom 66 Gallon Baitwell/Fishbox
- Dual High Volume Baitwell Pumps
- Transom Sink w/ Pull-Out Fresh Water Shower

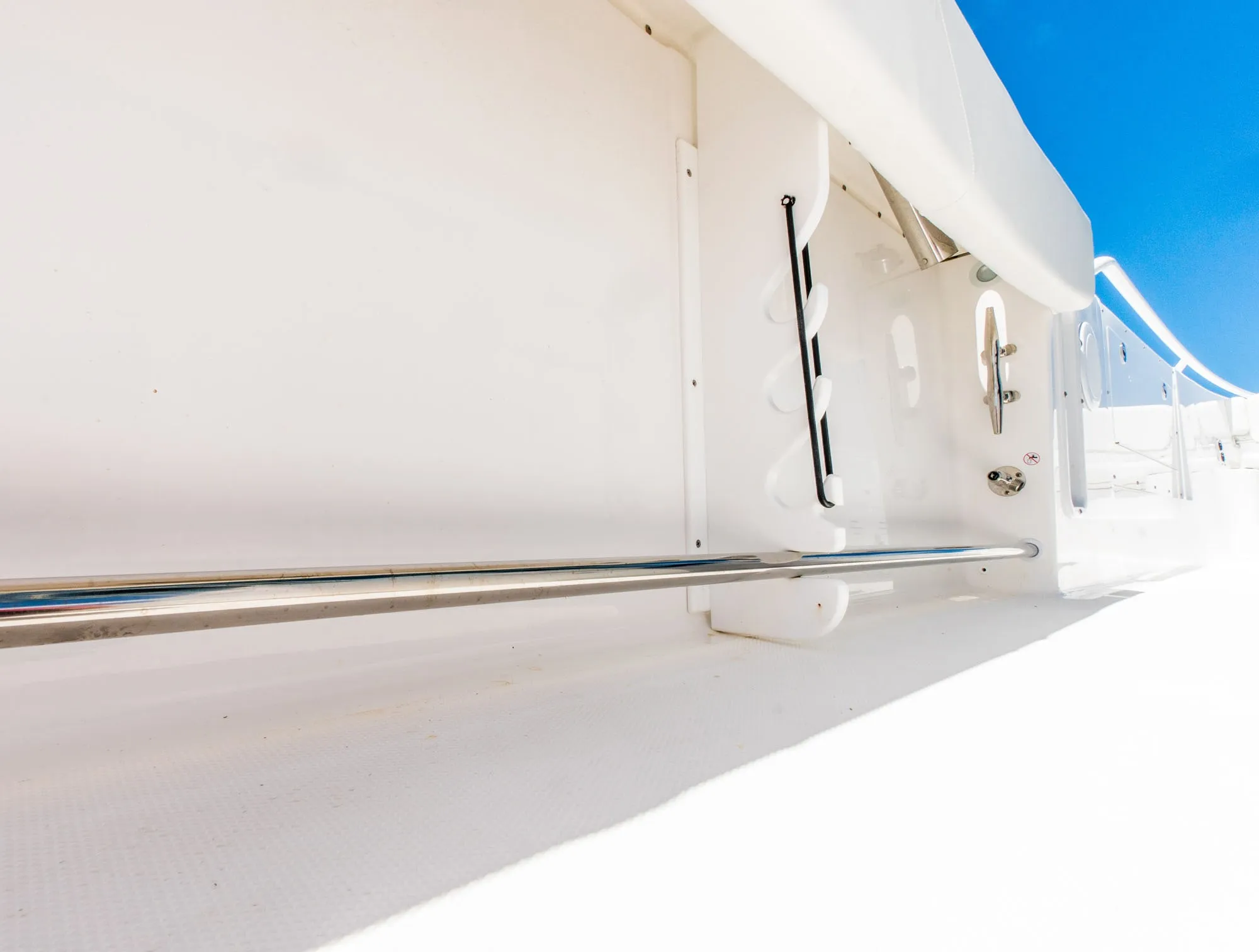

- Under Gunwale Cockpit Rod Racks
- Stainless Steel Cockpit Toe Rails (2)
- Removable Armstrong Transom Boarding Ladder
- Heavy Duty White Rubrail w/ Stainless Steel Insert
- Walk-thru Transom Door w/ SS Latch

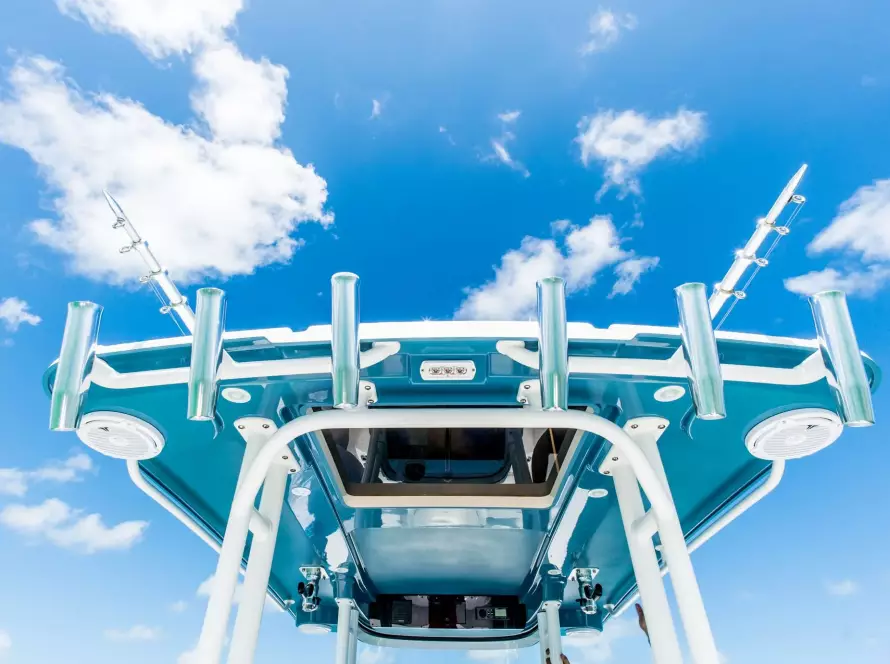

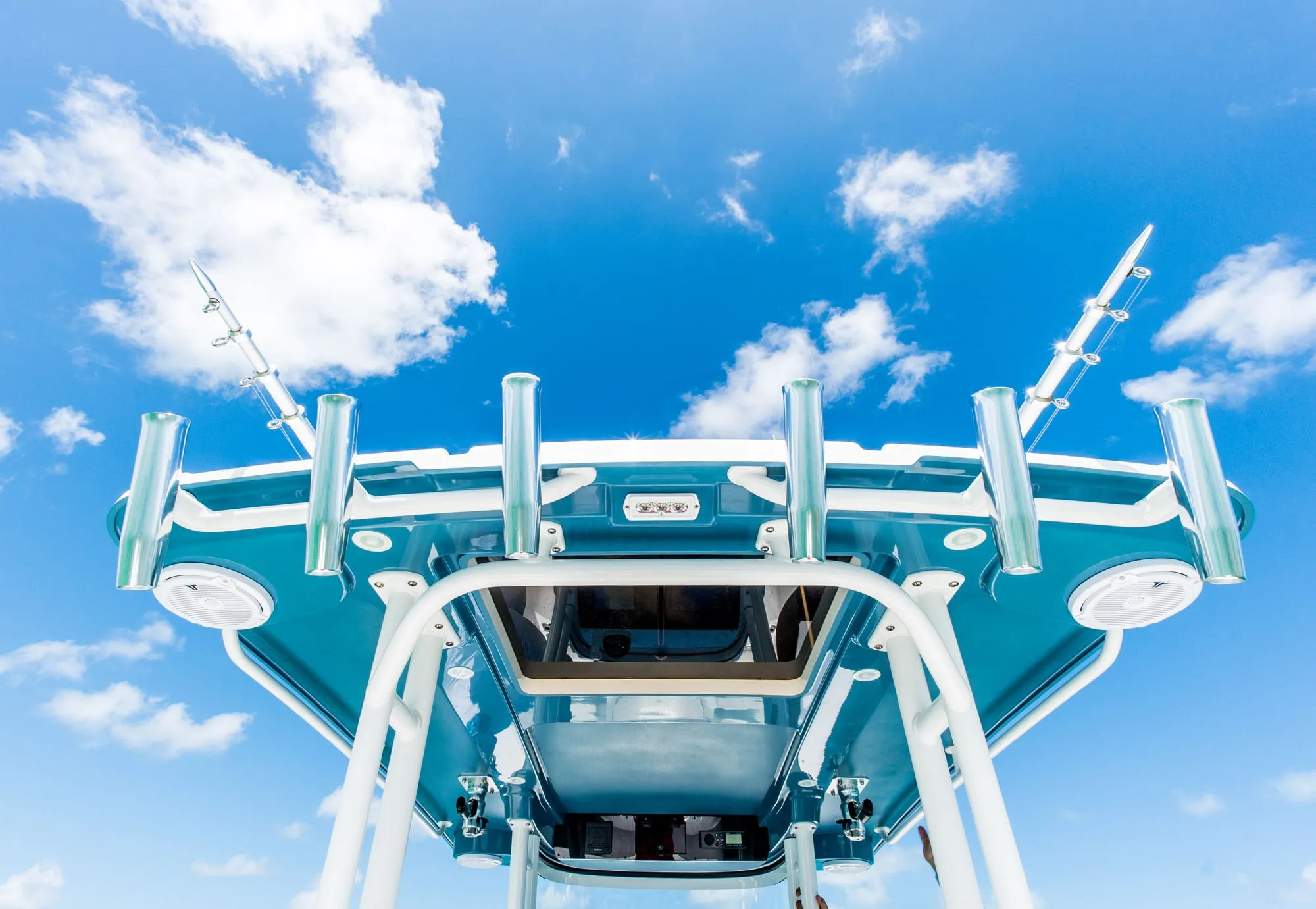

- Fiberglass Hardtop w/Rod Holders (6), LED Spreader Lights (2), Helm Light, Instrument Box, & Skylight
- Custom Clear Windshield w/ Aluminum Hardtop Support
- White Powdercoating for Hardtop

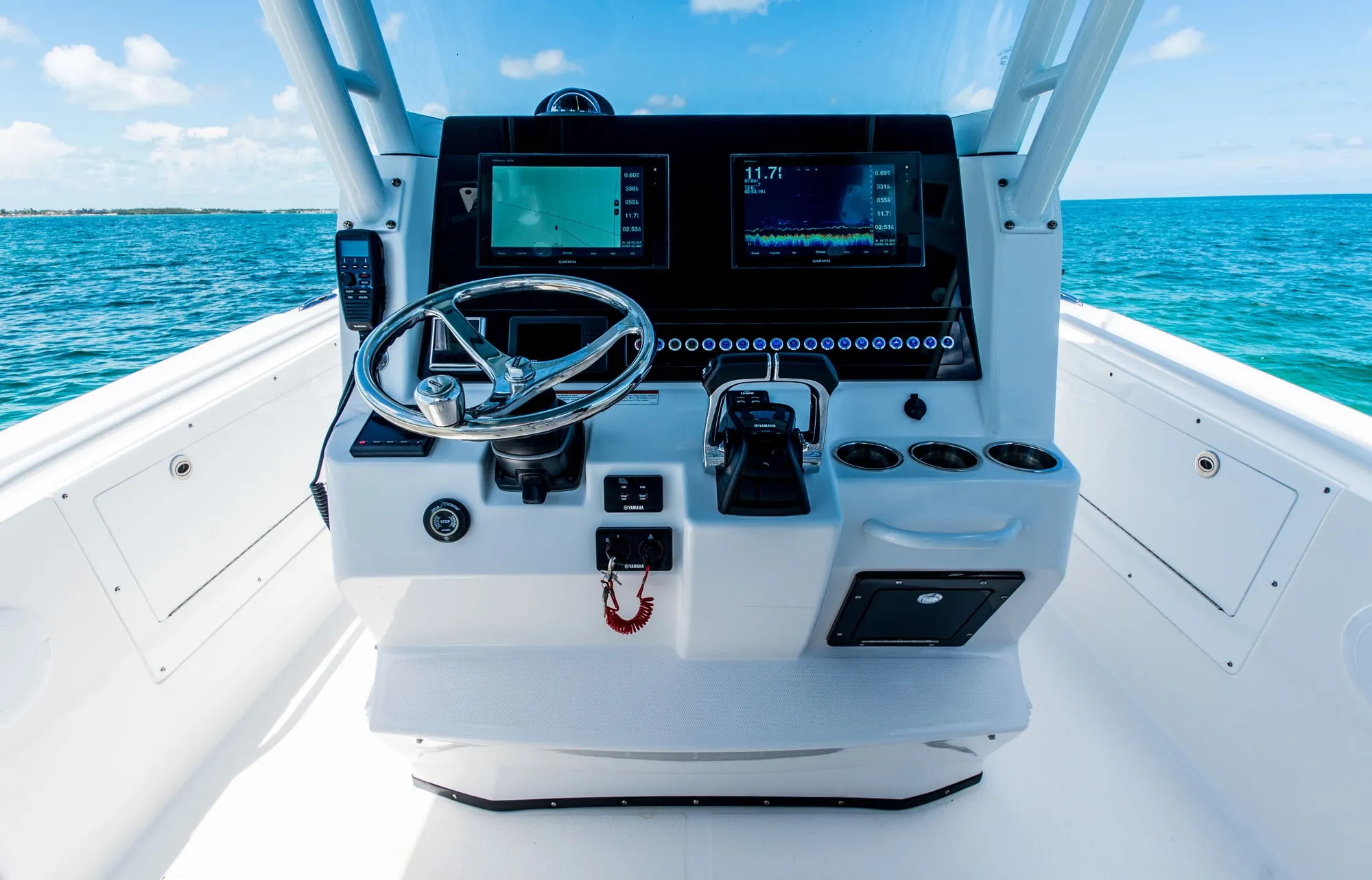

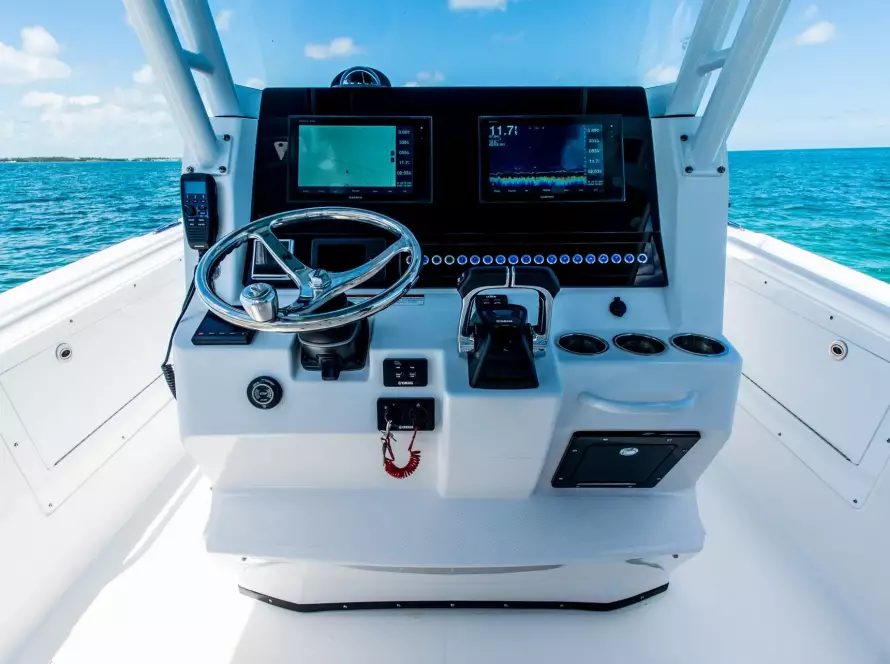

- Yamaha Electronic Steering w/Tilt Helm
- Deluxe Stainless Steel Steering Wheel w/Power Knob
- Helm Stainless Steel Drink Holders
- Ritchie Compass

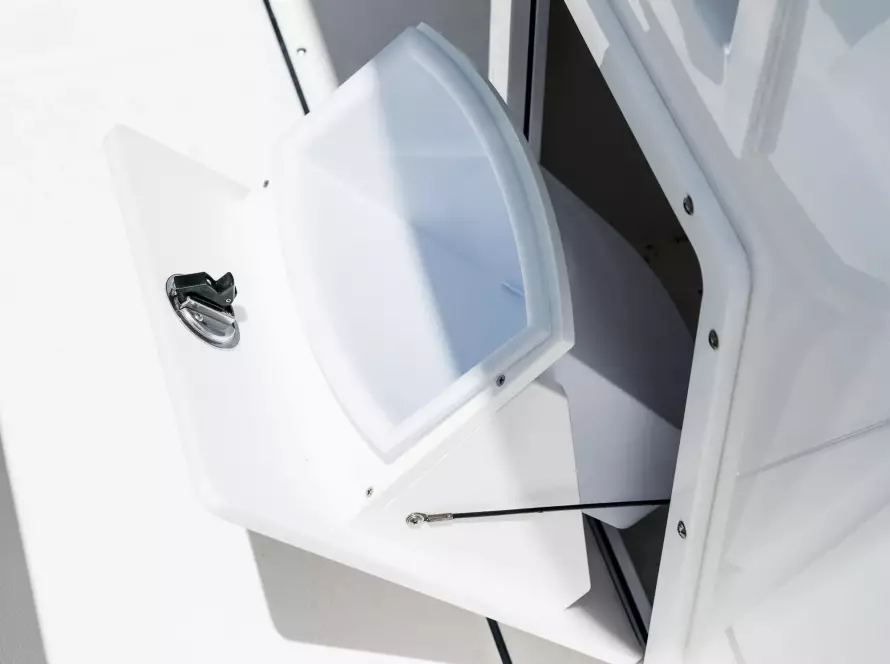

- Tip-Out Storage Bin
- Console Interior Battery Compartment w/ Access Door
- Removable Console Electronics Access Panel
- Console Bilge Access Door
- Walk-in Console W/Fiberglass Liner
- Interior Console Storage Center w/Drawers
- Folding Stainless Steel Coat Hangers (2)
- Interior Console Fresh Water Sink w/Pull-out Shower

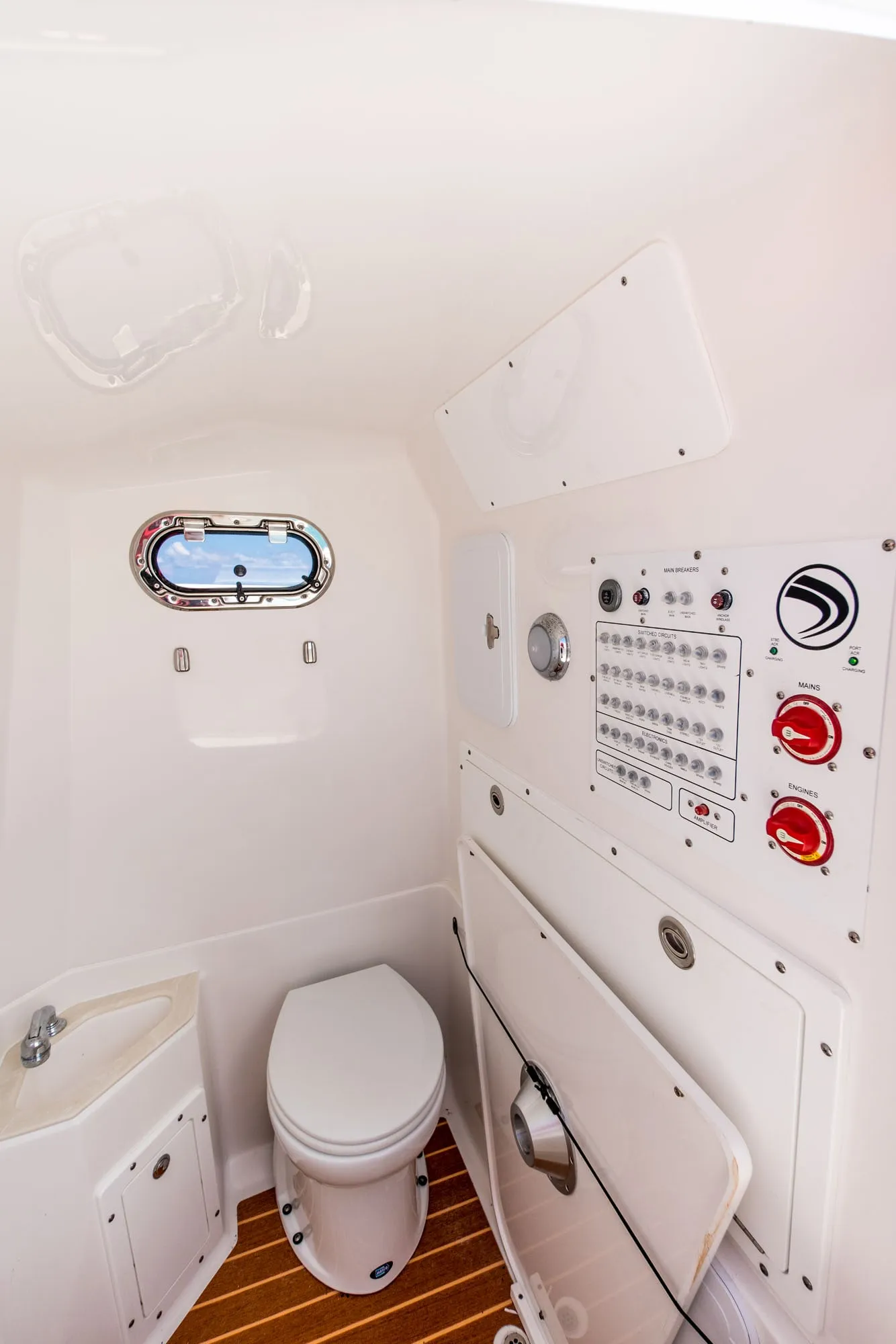

- Electric Fresh Water Head w/Holding Tank, Overboard Discharge & Pumpout
- LED Cockpit/Livewell Navigation Lighting
- LED Navigation Lights
- 2200 GPH Auto/Manual Bilge Pump Aft
- 1000 GPH Auto/Manual Bilge Pump Midship
- Seakeeper Ride
- Console Waterproof Switch Panels & 12V Outlet

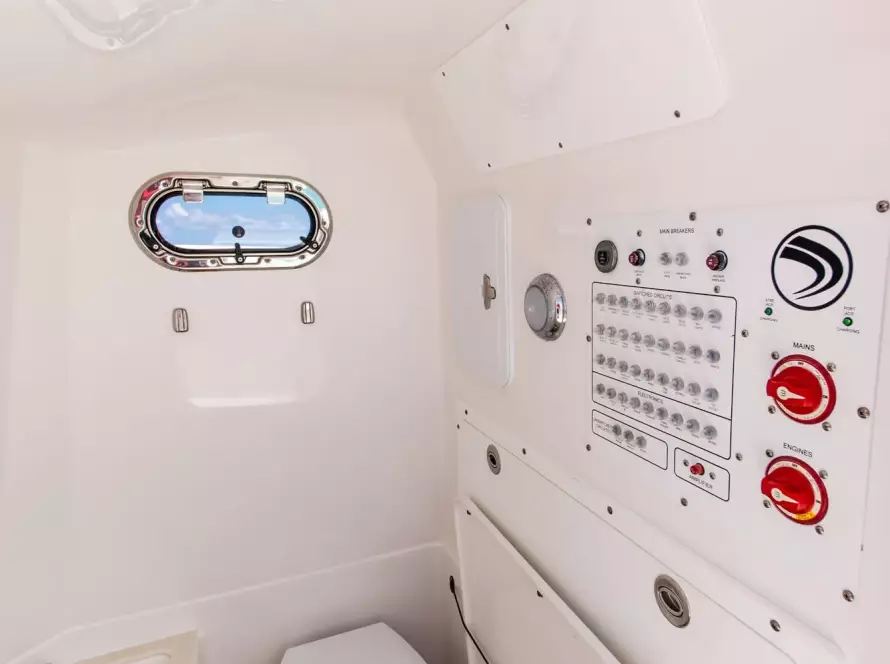

- Console Interior Main Distribution Panel w/ Battery Switches (3), Circuit
- Breakers & Fuse Holders
- Waterproof Connectors / Tin-Plated Copper Wiring
- House/Engine Battery System w/ On-Off Switches (3) Battery Isolator &
- Console Parallel Switch, Battery Charger (4 Bank) w/ Shore Power Inlet,
- Circuit Breaker & Cord
- LED Blue Underwater Lights (2)

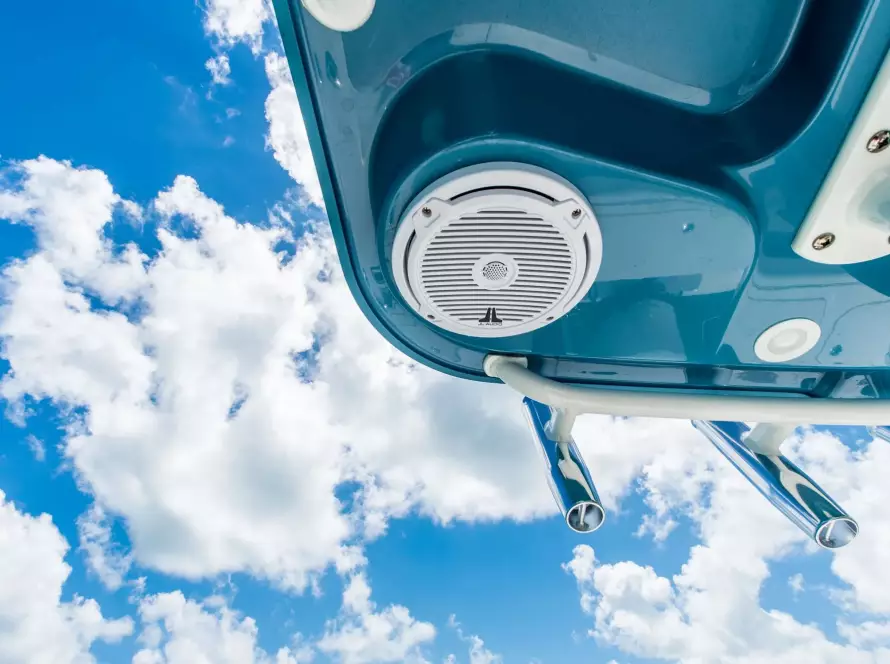

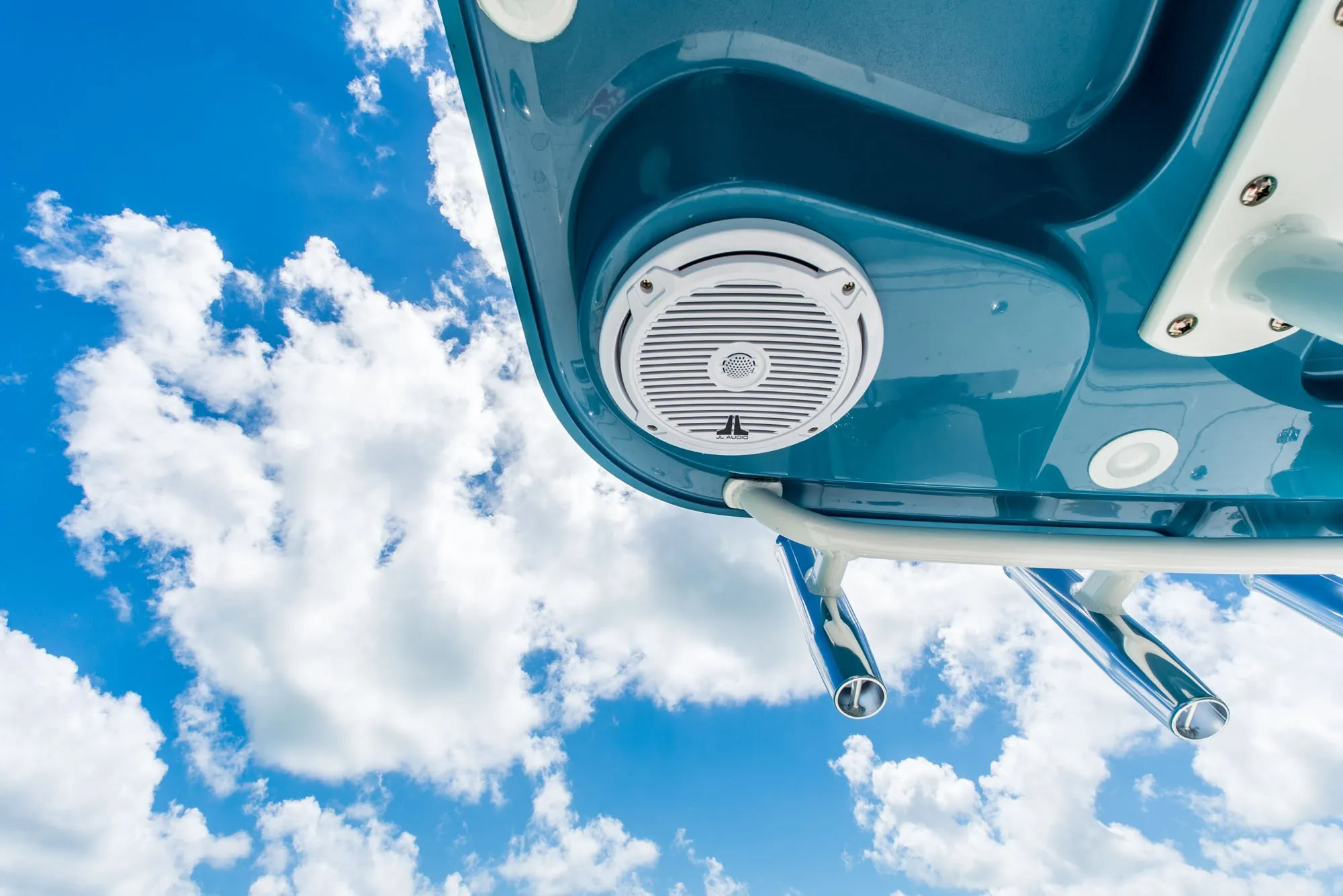

- Fusion Stereo with JL Audio Speakers
- Windshield Wiper

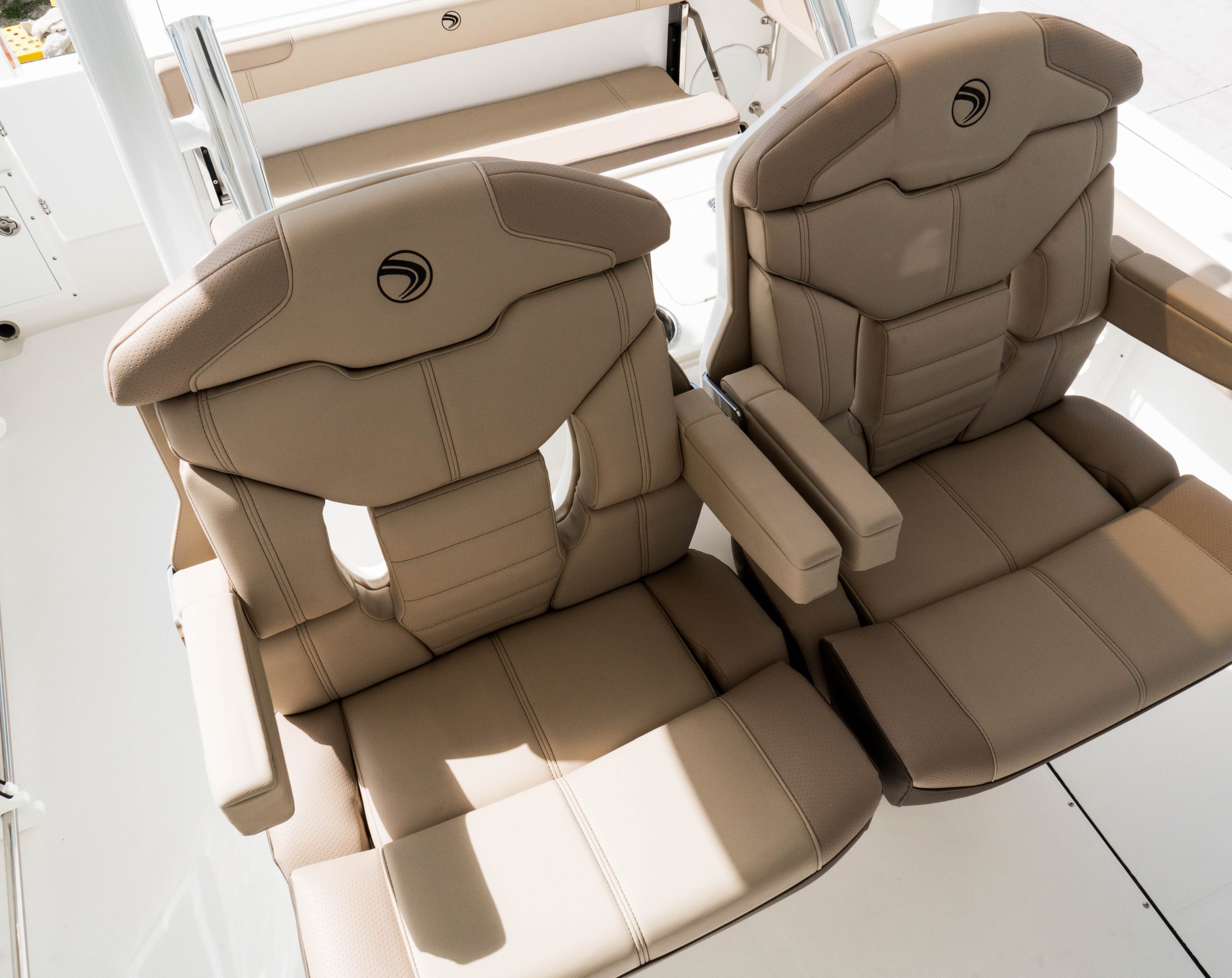

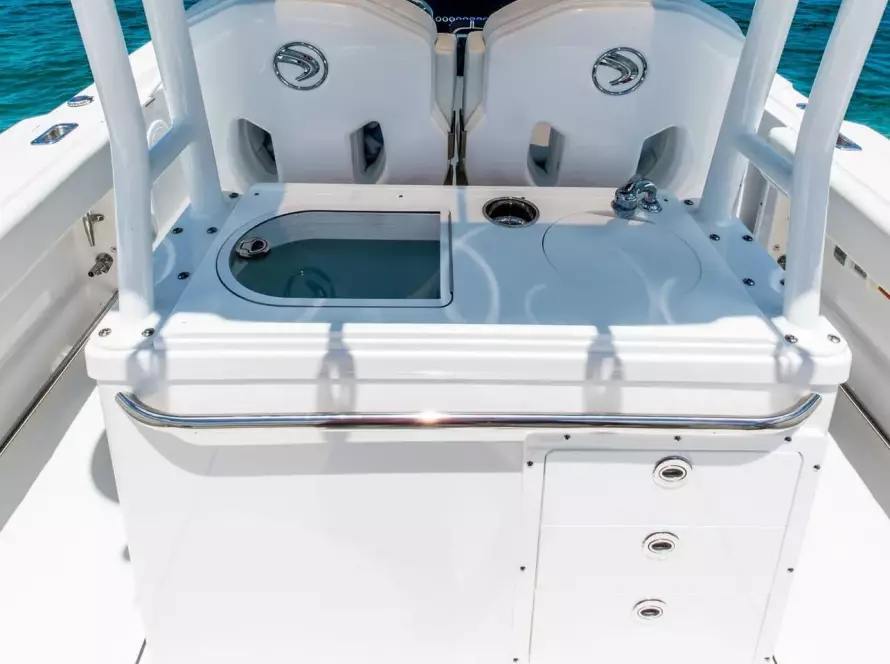

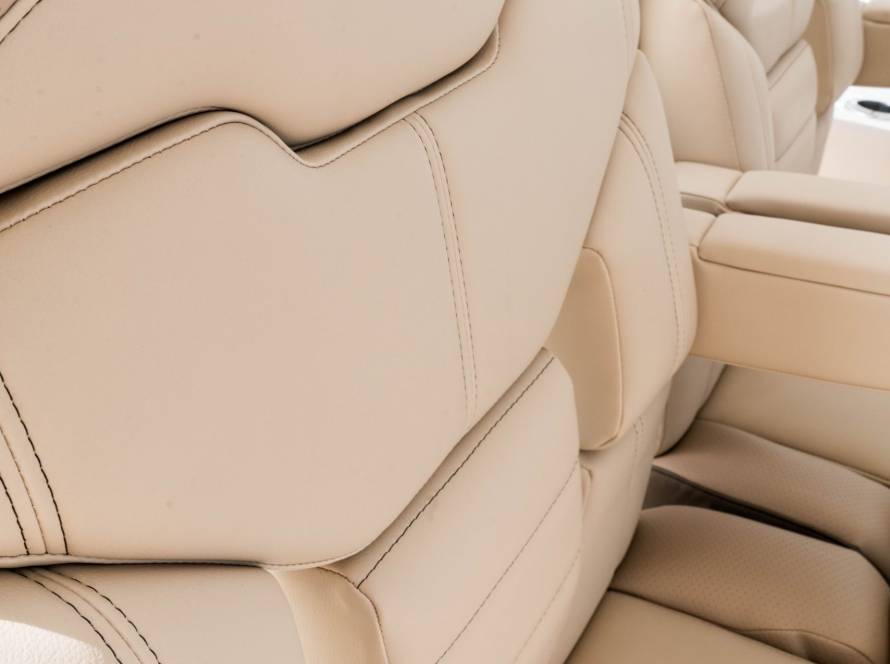

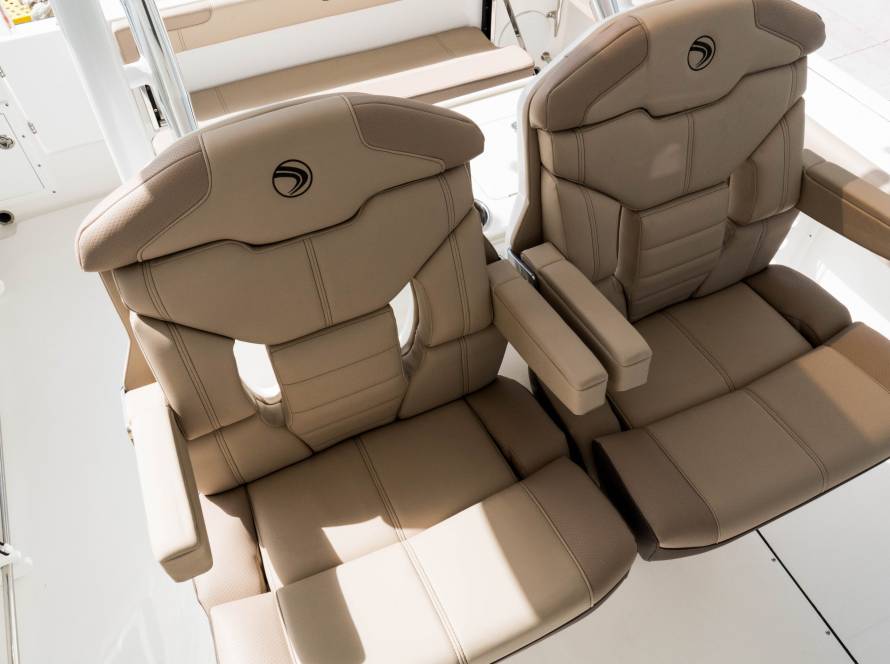

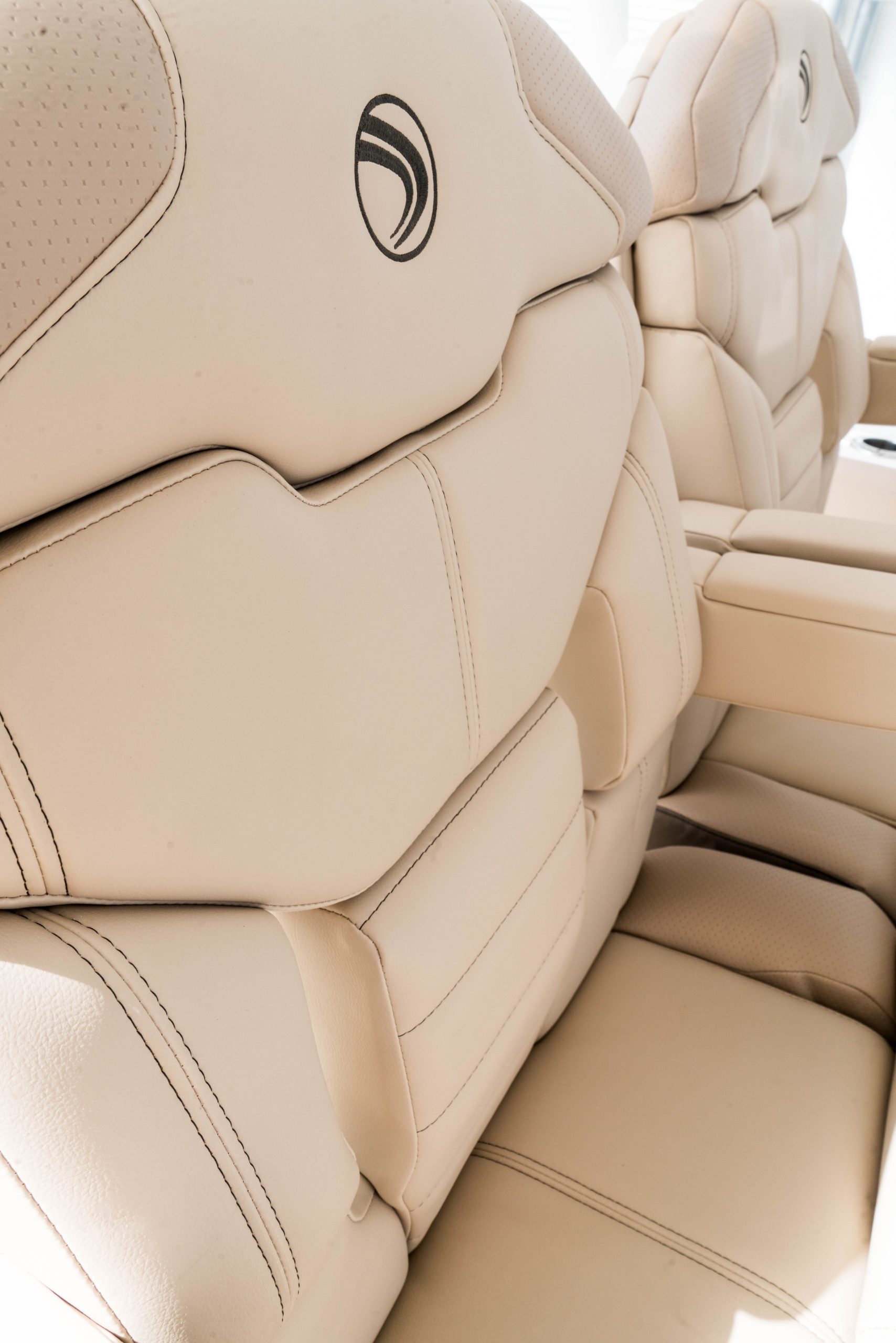

- Fiberglass Cooler Leaning Post w/ Removable 48QT Cooler, SS Fresh Water Sink, Pull-out Shower, Cutting Board, Storage Drawers, Aluminum Rod Holders (4), Grab Handle, Drink Holders (2) & Adjustable Flip-Bolster Helm Seats

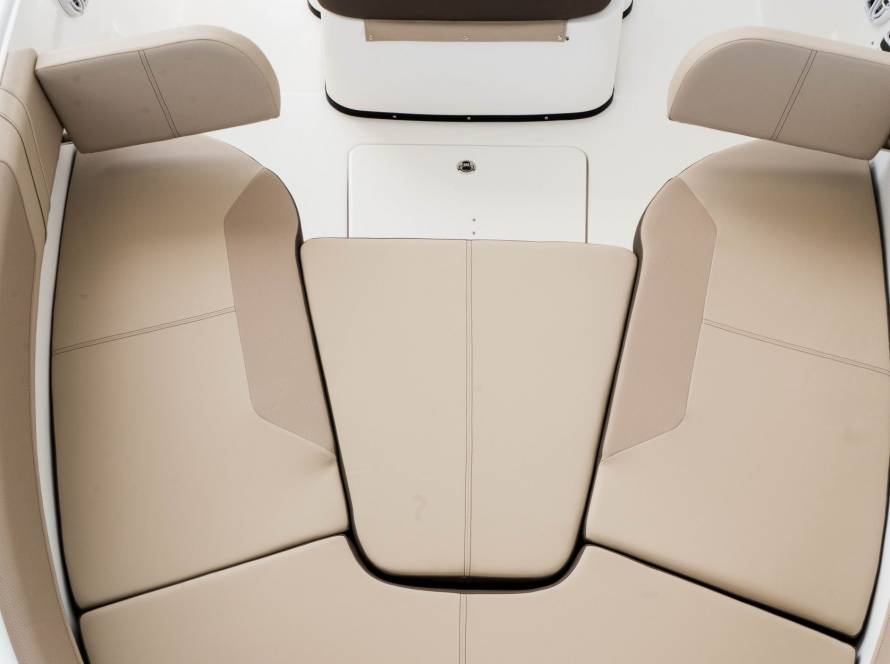

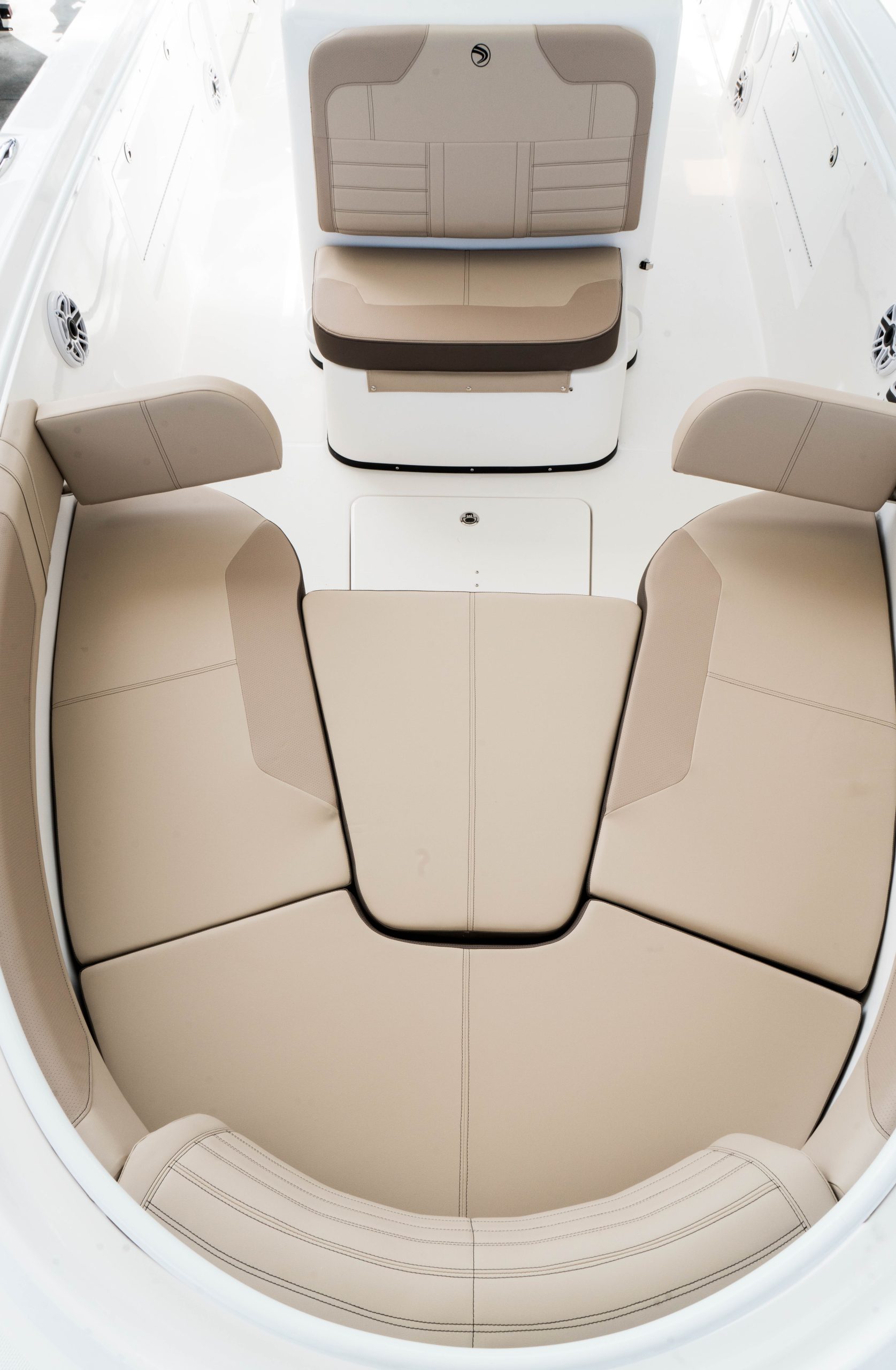

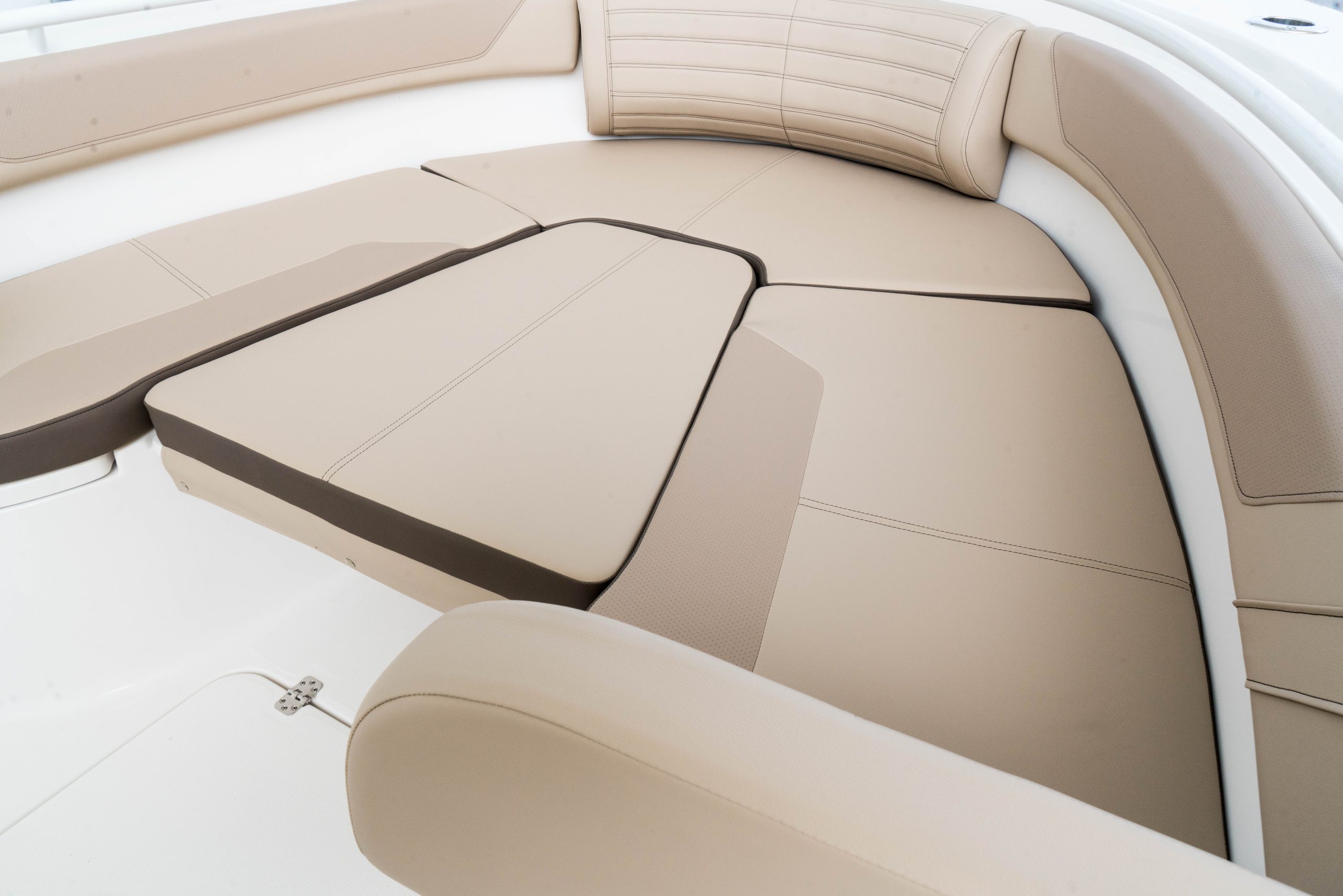

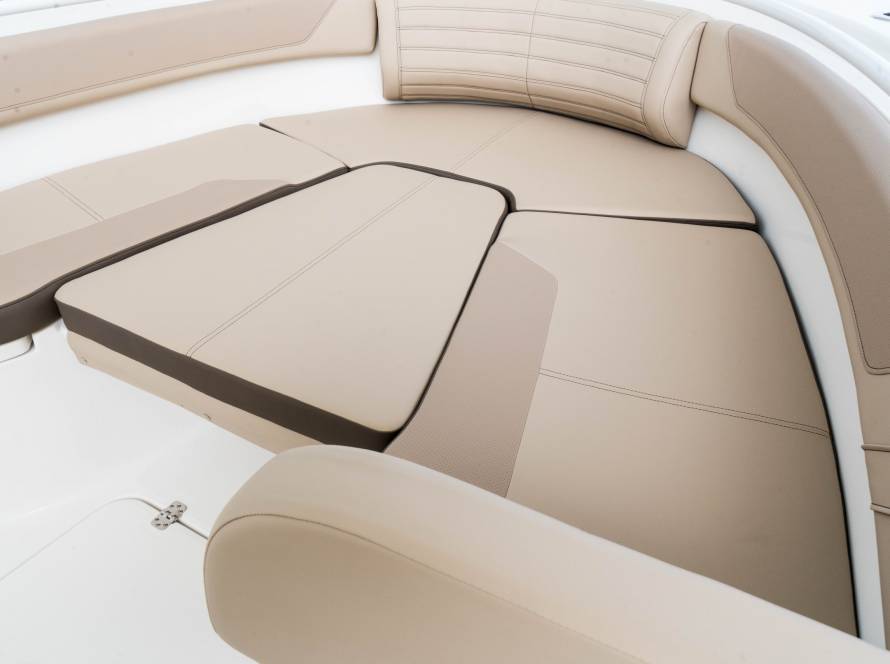

- U-Shaped Bow Lounge w/Backrest Bolster Cushions

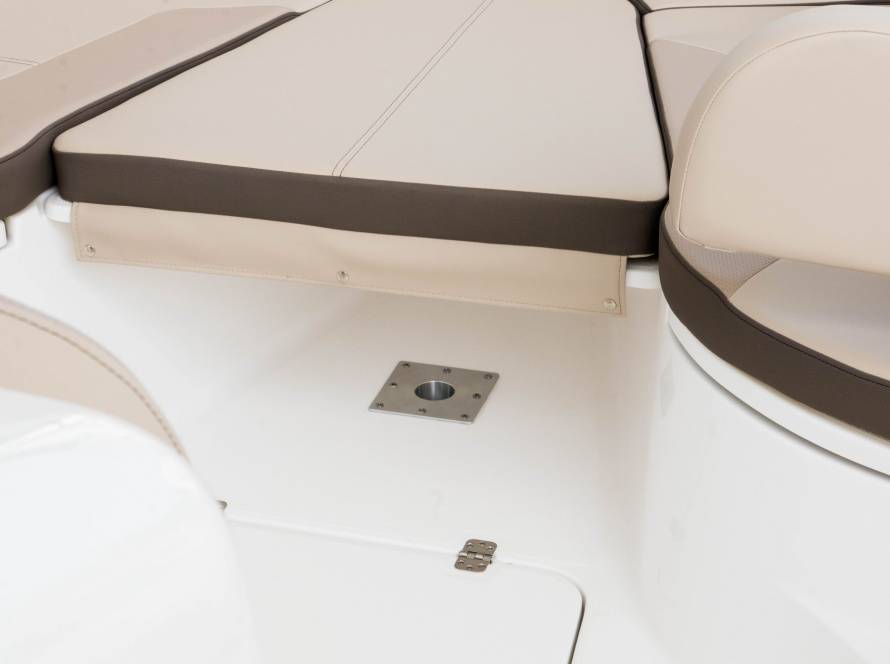

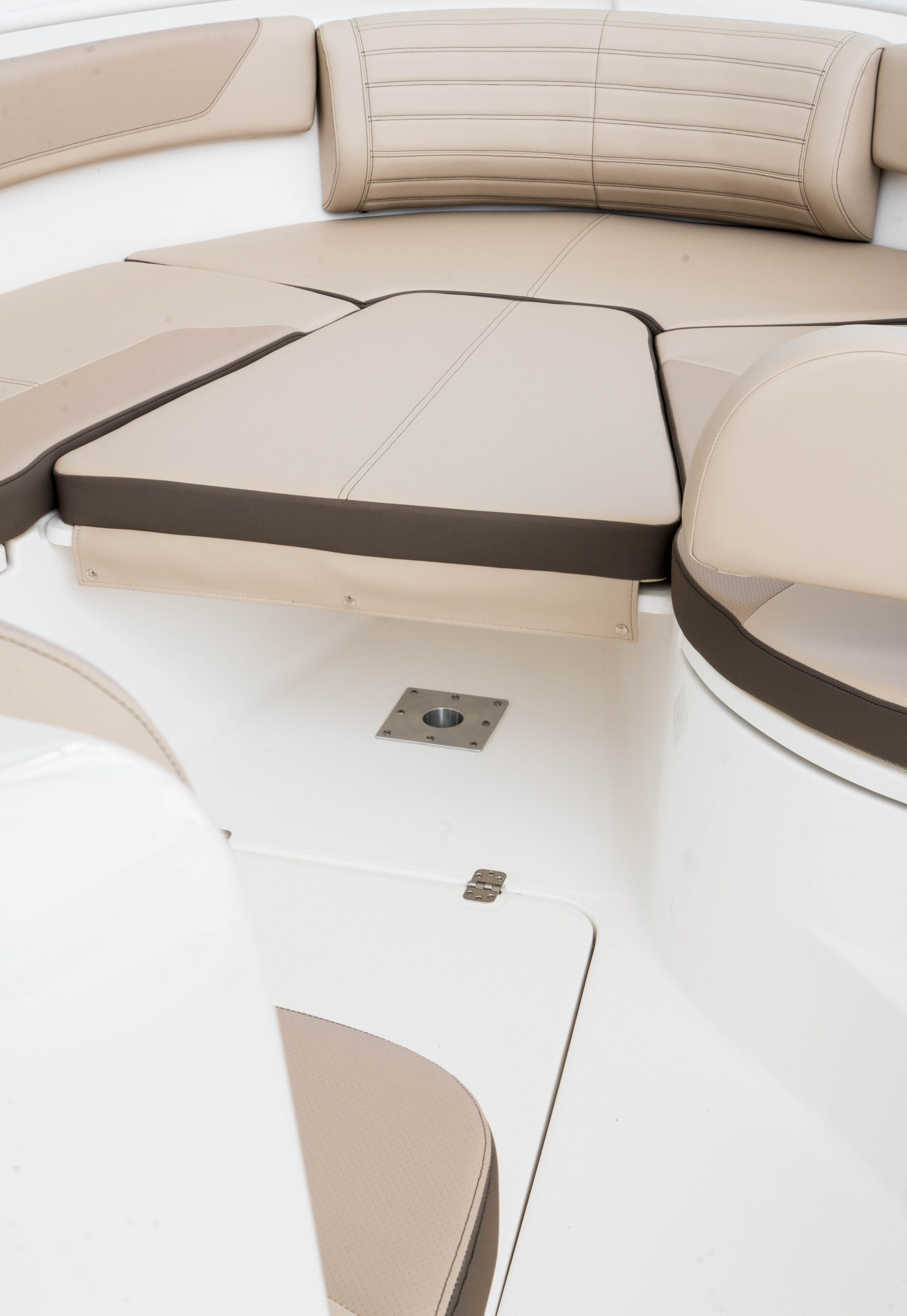

- Fiberglass Bow Filler w/ Cushion & Table Leg

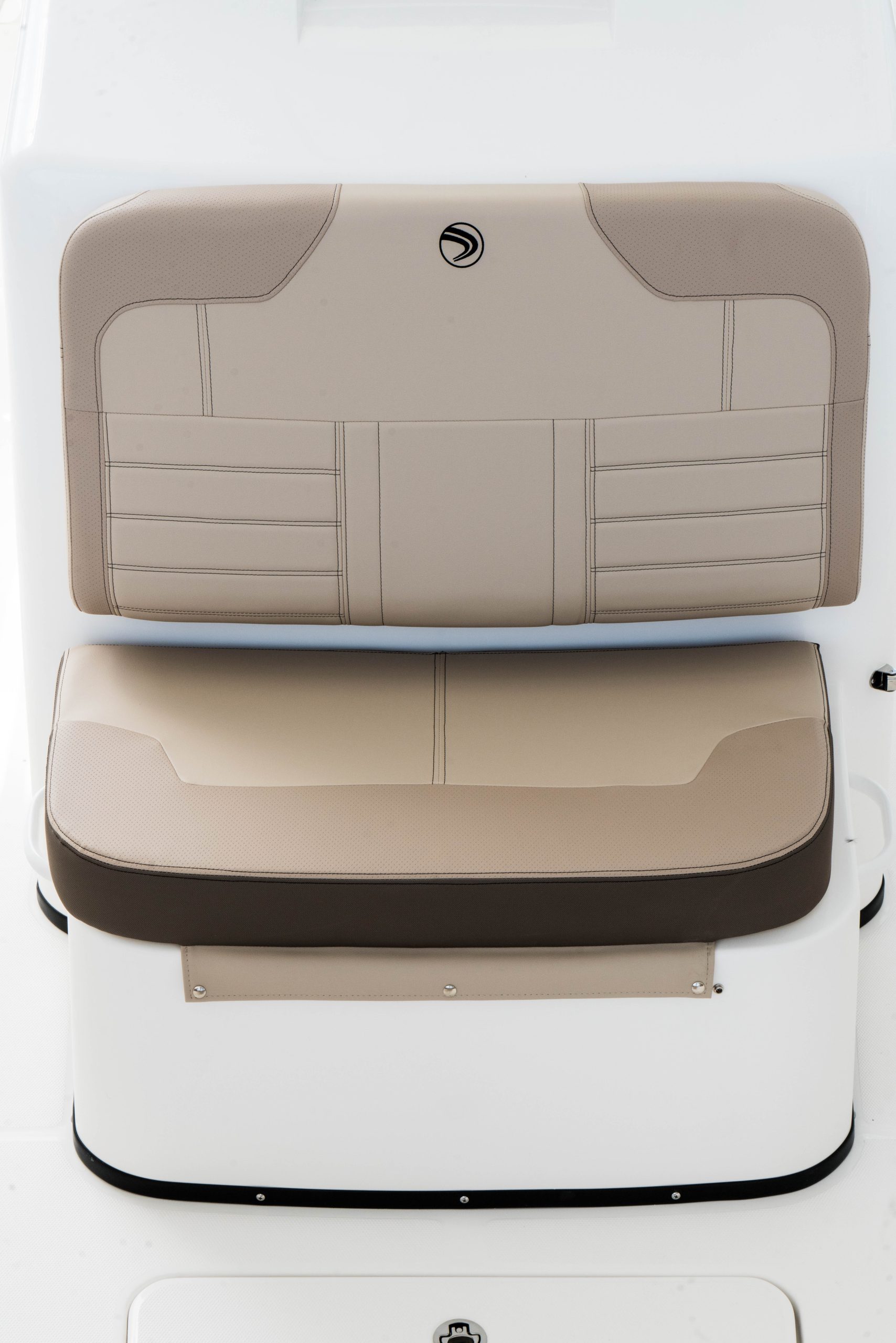

- Forward Console Seat w/ Backrest & Grab Handles
- Rear Tackle Box Storage

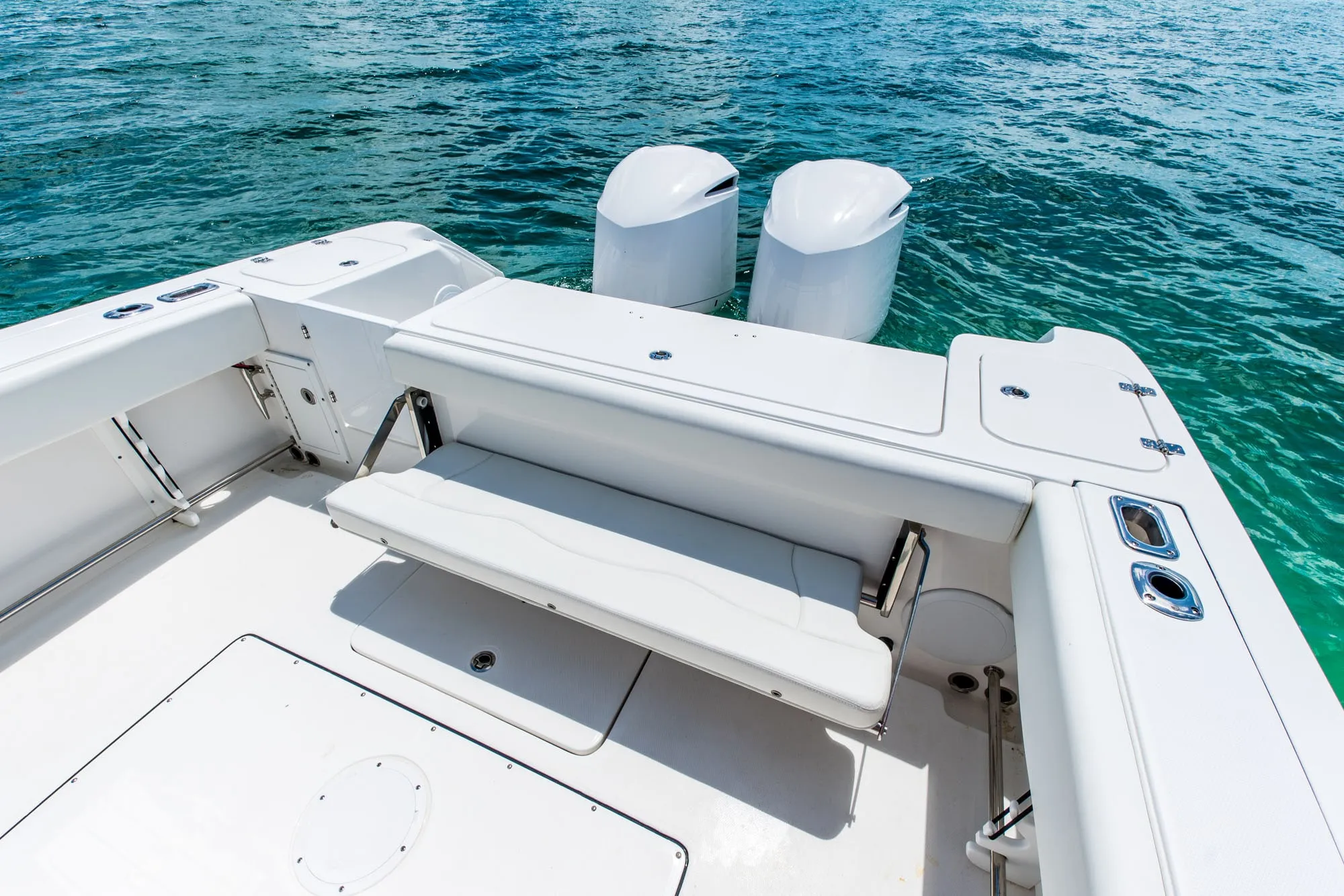

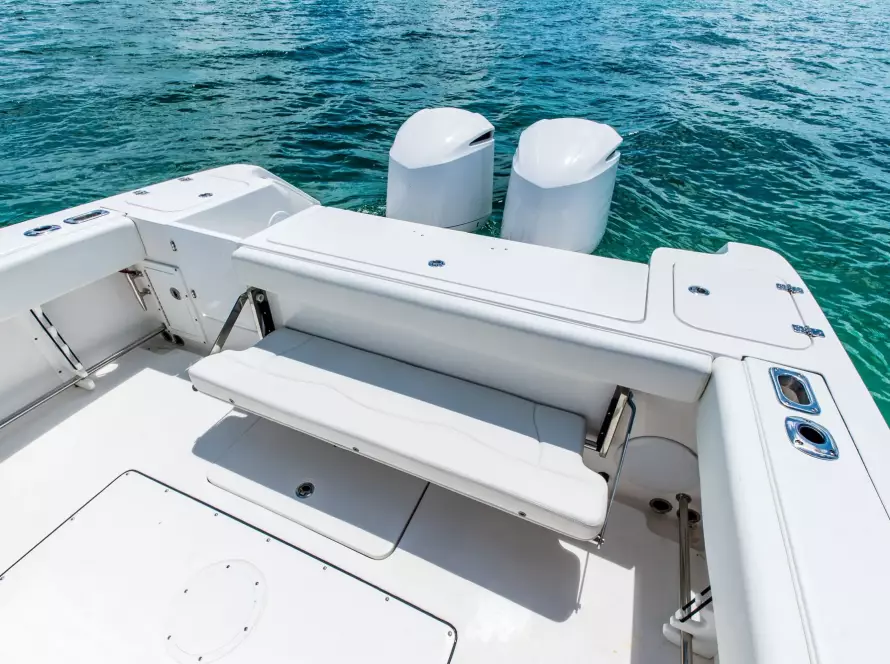

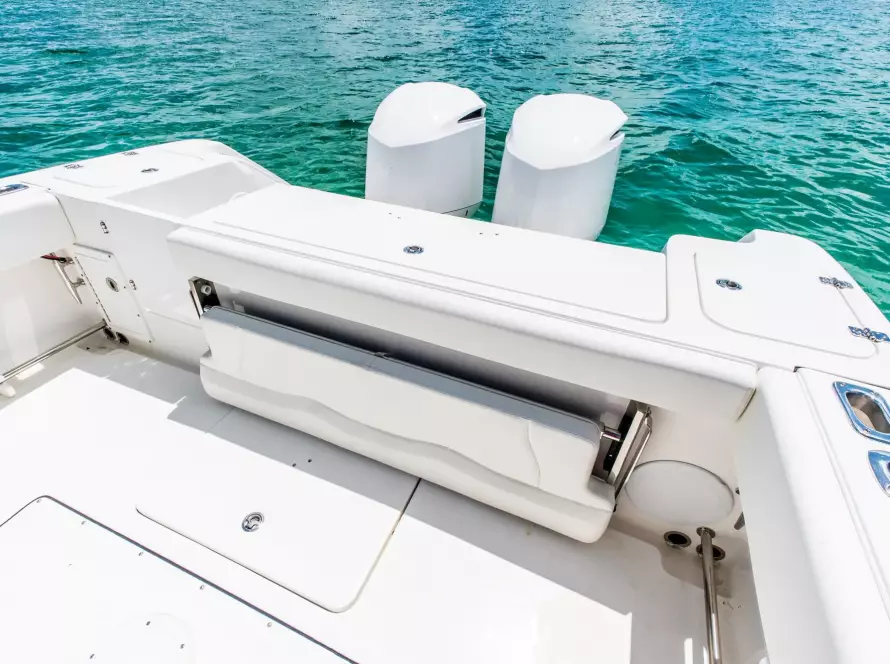

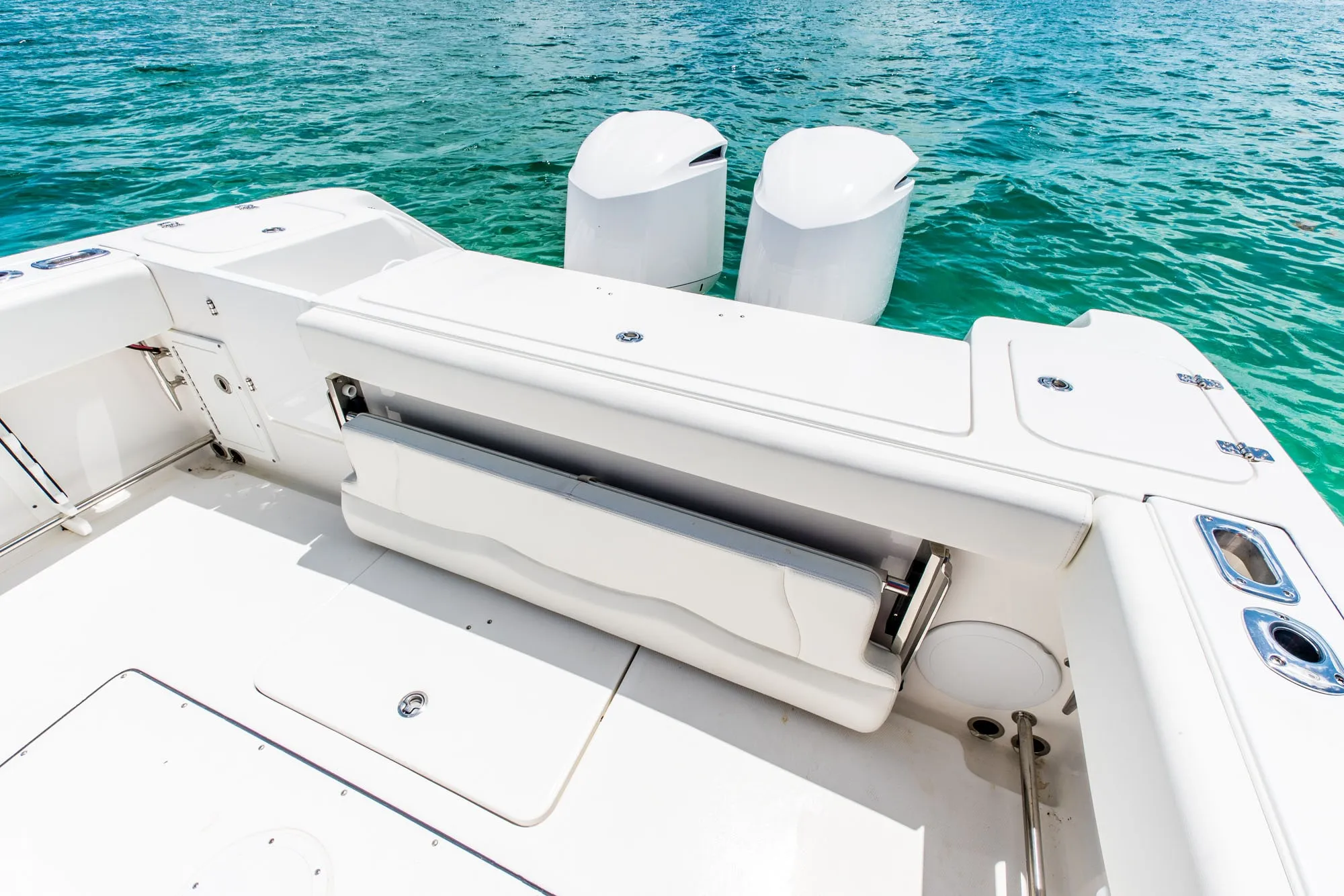

- Folding Removable Stern Seat

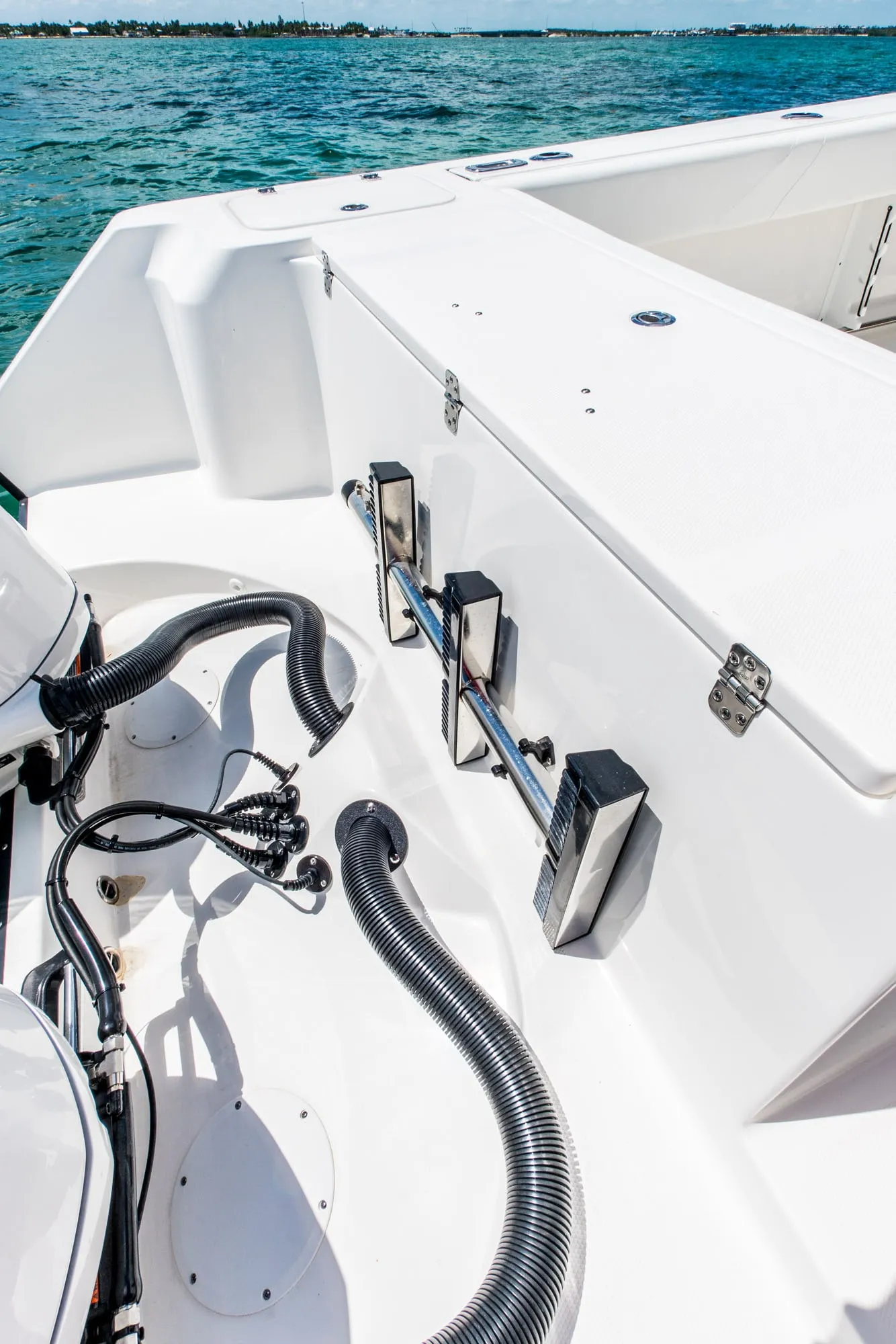

- White Powdercoated Transom Rod Rack
- Stainless Steel 22LB Anchor w/ Swivel

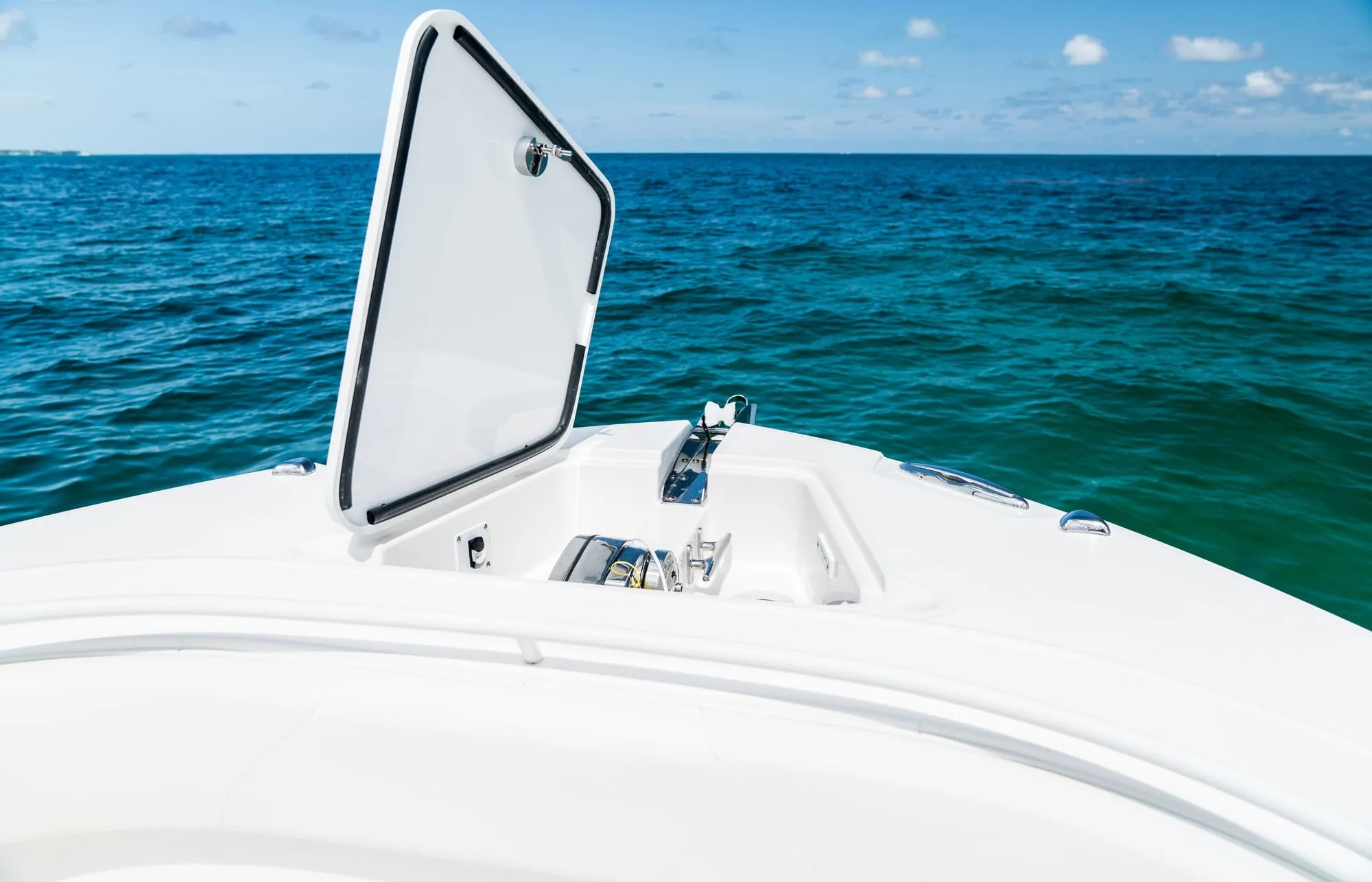

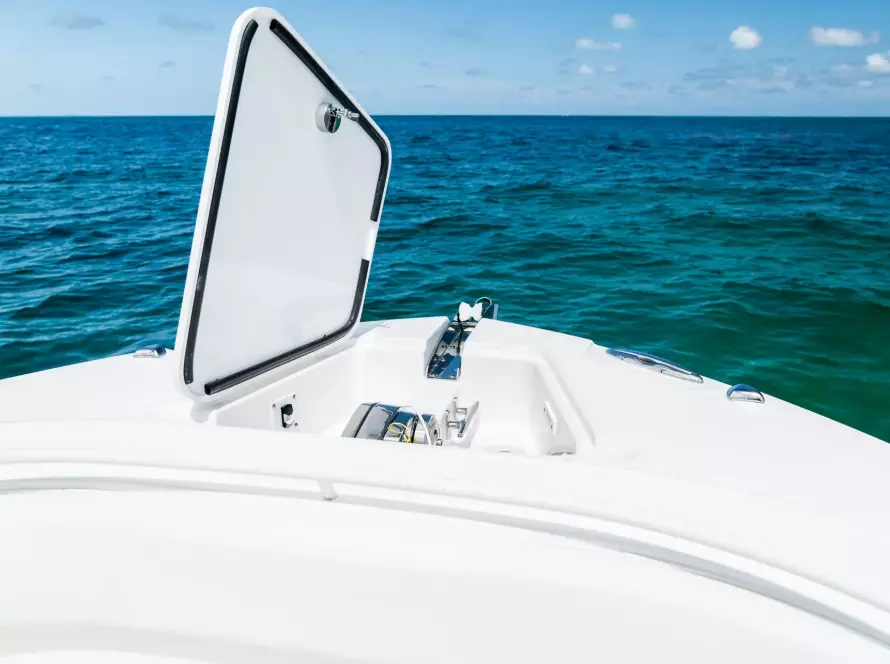

- Bow Anchor Locker w/ Overboard Drain
- SS Anchor Roller w/ 8” SS Cleat & Anchor Retainer
- Stainless Steel Hull Anchor Chafe Plate
- Concealed SS Anchor Windlass w/ 200’ Rope-15’ Chain
- Rope Locker w/ Fresh Water Washdown
Dual Yamaha F300XSB2 DES, Yamaha White
OPTIONAL FEATURES
Hullside Color Dark w/ White Bottom
- COLORS: Midnight Blue, Stars & Stripes Blue, St. Barth’s Blue
Hullside Color Light w/ White Bottom
- COLORS: Pewter, Ice Blue, Sea Foam Green
- 3-Sided Enclosure, Color choices: Toast (default), Platinum, Medium Blue, Navy Blue, Black

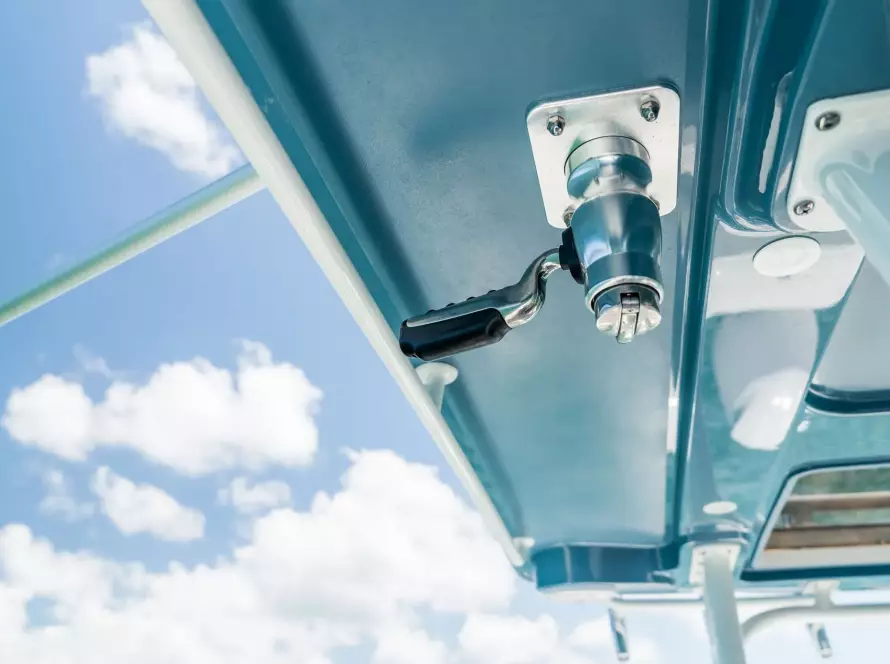

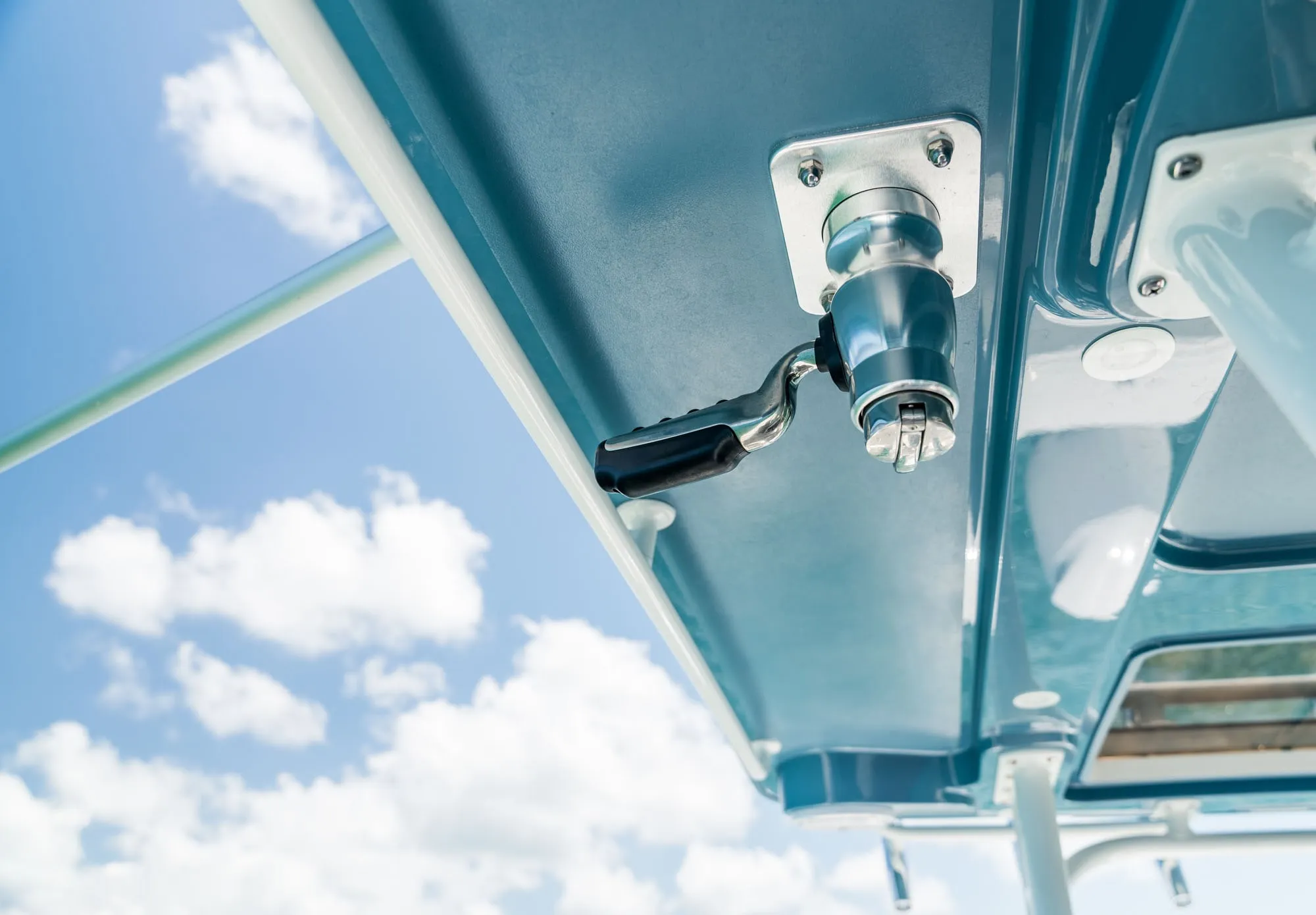

- 18’ Taco Silver Crank-up Outriggers
- Color-Match Hardtop
- Garmin Dual 8612xsv with B175H Transducer & 215 VHF with Remote Mic
- Garmin Dual 8616xsv with B175H Transducer & 215 VHF with Remote Mic
- Garmin XM Satellite Weather Module
- Garmin Fantom 24″ Closed Array Radar
- Garmin Fantom 54″ Open Array Radar
- Premium Fusion Stereo Package w/Bluetooth & JL Audio 7.7″ LED-Color Speakers (8), JL Audio Digital Amp (2) & JL Audio 10in Subs (2)

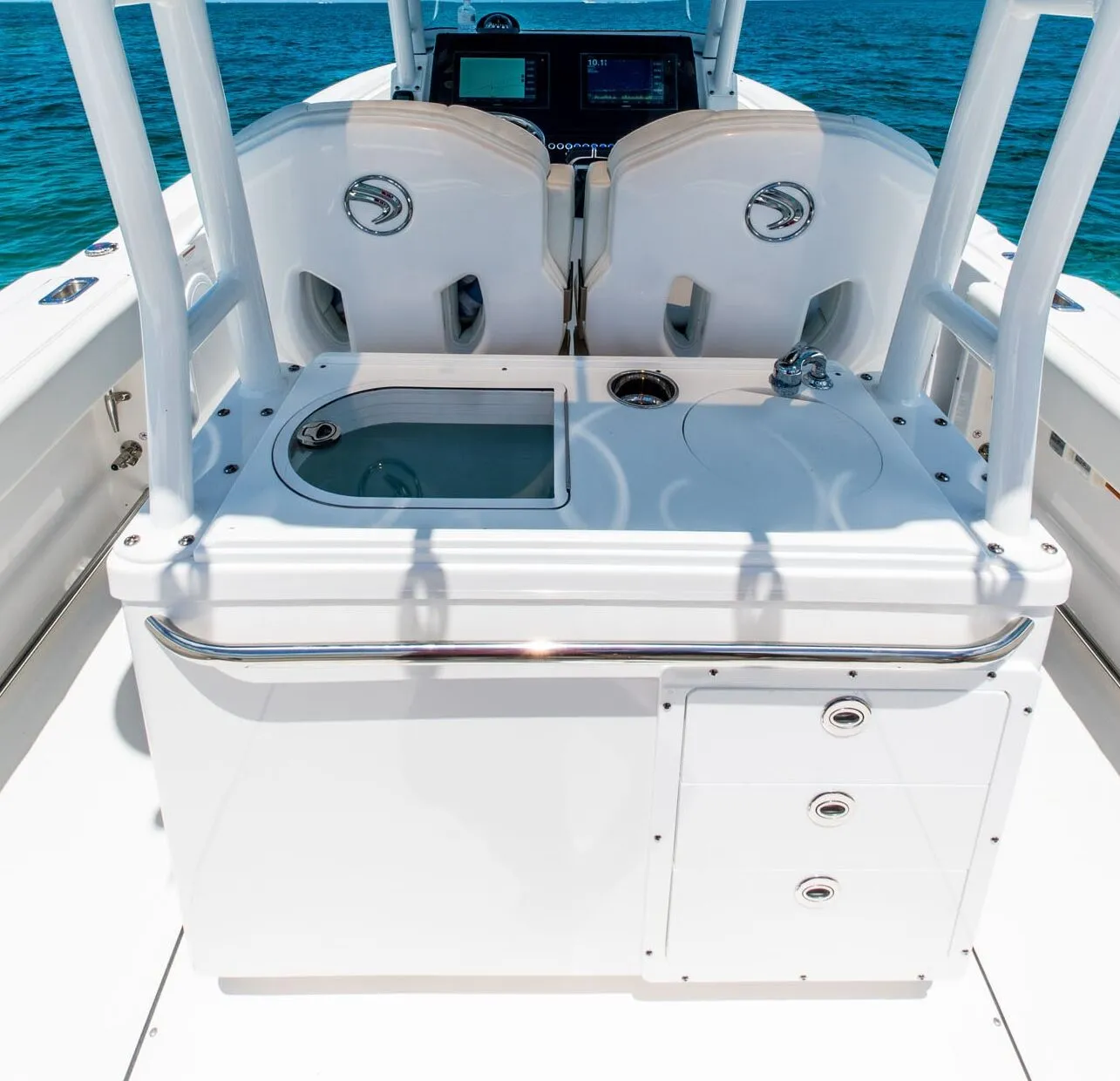

- Super Leaning Post Prep Station with Top Side Storage, Fresh Water Stainless Steel Sink, Storage Drawers (3), Refrigerator and Waste Basket
- Super Leaning Post Prep Station with Stainless Steel Sink, Storage Drawers (3) and 30 Gallon Livewell
- Super Leaning Post Prep Station with Electric Grill, Fresh Water Stainless Steel Sink, Storage Drawers (3), Waste Basket, Refrigerator
Fish Ready
325CCThe 325CC runs the gamut when it comes to rod holders and storage for all your offshore adventures. Trolling made easy.
Families and friends can enjoy comfort aboard this entire 32-footer for those long runs to find the right fish.
